Thermoelectric converters TCA 9425

Temperature Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

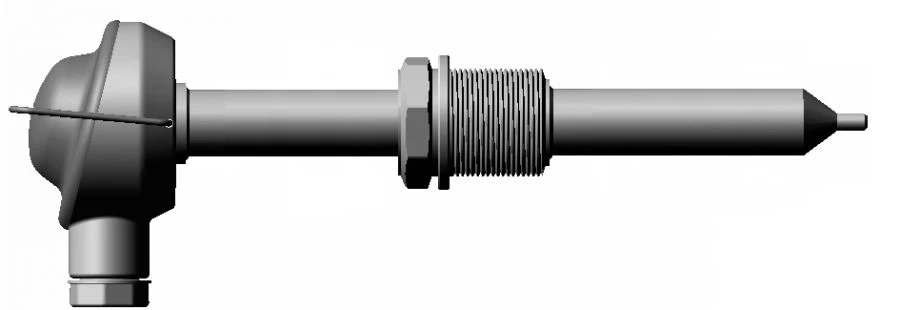

Temperature measurement in gas-turbine and steam-turbine plants at thermal power engineering facilities of combustion products of liquid or gaseous fuel up to 900°C in a flow of up to 170 m/s with pressure up to 3 MPa; steam superheated up to 585°C in a flow of up to 60 m/s with pressure up to 25.5 MPa.

Specifications

Unit designation THA 9425

Type of climatic version UHL2, UHL3

Type TXA

Degree of protection IP54

Insulation of the working end Not isolated

Material of protective armature CHN45U

Measuring limit, min -40 °C

Measuring limit, max 900 °C
