Available for Import

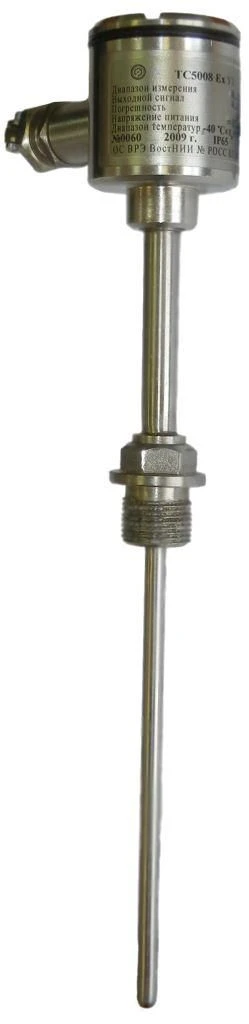

Temperature sensor ??5008??

Measurement Device Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Temperature sensors ??5008Ex of explosion-proof version are designed to measure the temperature of liquids and gases by converting into a unified current output signal in non-aggressive environments in relation to steel 12?18?10?. Temperature sensors ??5008?? are explosion-protected with the type of "flameproof enclosure" and have the explosion protection marking "1??dII??5". The devices meet the requirements of electromagnetic compatibility group (II) A according to GOST R 32137-2012

Specifications

Basic error tolerance limit ±0.25%; ±0.5%

Measured temperature ranges lower limit: -50; -25; 0°c; upper limit: 0; 25; 50; 50; 100; 150; 150; 200; 250; 300; 350; 350; 400°c

Ambient temperature From -40 to +70°C

Average service life 8 years

Weight Not more than 0.6

Output signal DC current: (4-20) mA (two-wire communication line); (0-5) mA (three-wire communication line)

More info Connection fitting thread - M20*1;5-8g; M12*1;5-8g

Power consumption with output signal (4-20) mA - not more than 0;85 V-A with output signal (0-5) mA - not more than 0;36 V-A.

Load resistance with output signal (4-20) mA - from 0;2 to 1000 ohms with output signal (0-5) mA - from 0;2 to 2500 ohms

Weight Not more than 0.6

Power supply voltage 17-42VDC

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
