Microsyringe AGAT MSH-100

Measurement Device Parts

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

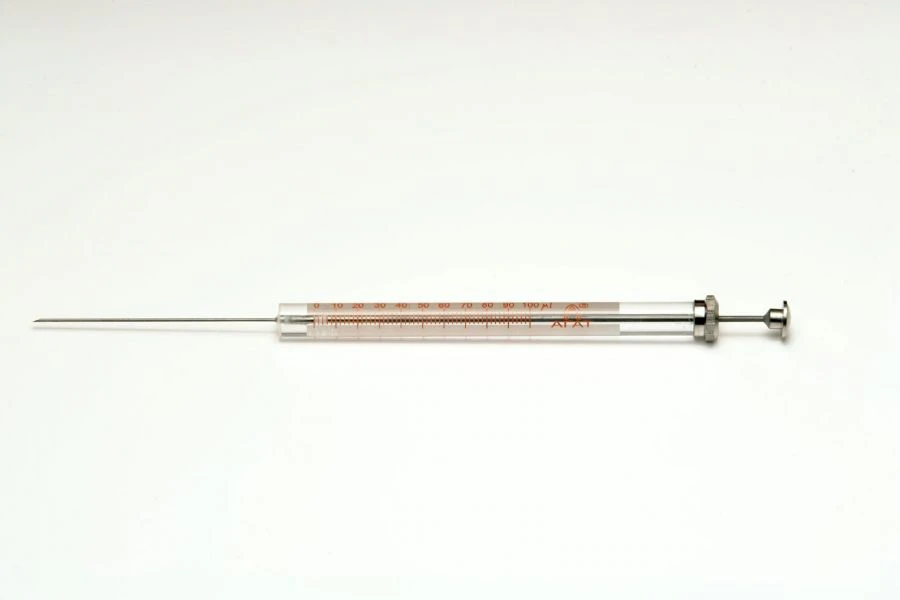

Microsyringe AGAT MSH-100 is designed to measure the volume of liquid sample when it is introduced into the pipette-evaporator of chromatograph. Microsyringe is a mechanical piston dosing device consisting of a glass cylinder with counting device (linear scale), steel piston (rod) with fluoroplastic seal and button, steel needle. The principle of operation is based on the creation of alternating vacuum or overpressure in the calibrated channel of the glass cylinder. Vacuum and overpressure are created by moving a metal piston in the channel of the microsyringe. The microsyringe is made of chemically resistant materials. The cylinder of the microsyringe has an indelible scale with an illuminating strip and duplicate risks on the opposite side of the cylinder to eliminate the effect of parallax.

Technical Specifications

Nominal value of the maximum dispensed volume	100
Dispense volume range	20...100
Scale value	2
Tolerance limits of relative systematic error	5...-5 %
Tolerance limit of relative mean square deviation (RMS) of random error	8 %
Weight	12...16 g
Needle length	51...53 mm
Overpressure at which the microsyringe should be sealed for 15 sec.	0.3 MPa
Average service life	4 a
Average time to failure	30000 pc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
