TC-SCAN 6040 conveyor-type introscope

Radiation Inspection Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

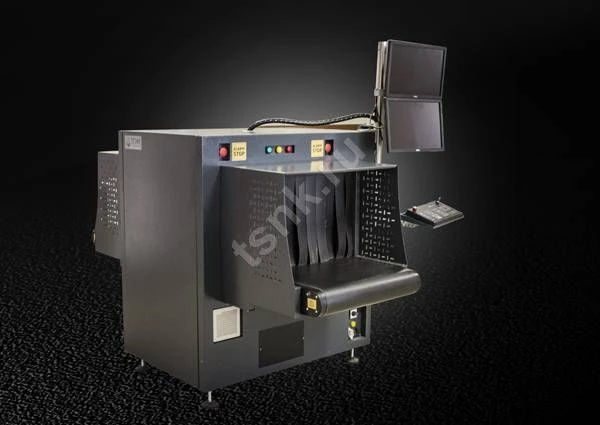

The TS-SCAN 6040 is a modern and effective tool for ensuring security at transport, strategic sites and checkpoints of institutions.
The TS-SCAN 6040 is a reliable and advanced unit for inspection of objects with maximum dimensions of 60x40cm (width x height). The system scans the cargo being inspected from one or two angles, which increases the detection of dangerous or prohibited items. The system is equipped with real-time image analysis functions, an improved material recognition system, and automatic highlighting of suspicious areas. The system has an ergonomic operating concept with programmable priority keys.
It can be used as part of an automated hand luggage and baggage control system.
By means of multiview scanning, the operator is able to distinguish between specially concealed dangerous objects, such as thin-layer explosive charges.

Specifications

Maximum dimensions of the object (WxH), mm 600?400 mm

Tunnel size (WxH), mm Not less than 600x400 mm

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Weight, kg 580 kg

Overall dimensions (DxWxH), mm 2000?830(1080*)?1230 mm

Power consumption, kW 1 kW

Number of beams (angles) 1 or 2

Work cycle Round-the-clock

Maximum/operating current, A 0,001/0,0007 A

Maximum/operating voltage, kV 160/140 kV

Penetration capacity (steel), mm guaranteed 32, typical 35 mm

Resolution (by wire), mm Guaranteed 38 AWG (0.1 mm), typical 40 AWG (0.08 mm) mm

Conveyor speed, m/s 0.2

Maximum uniform load on the conveyor, kg 200 kg

Conveyor height from the floor, mm 649 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
