TAIL GRIP Quick Release Device for Efficient Workholding Applications

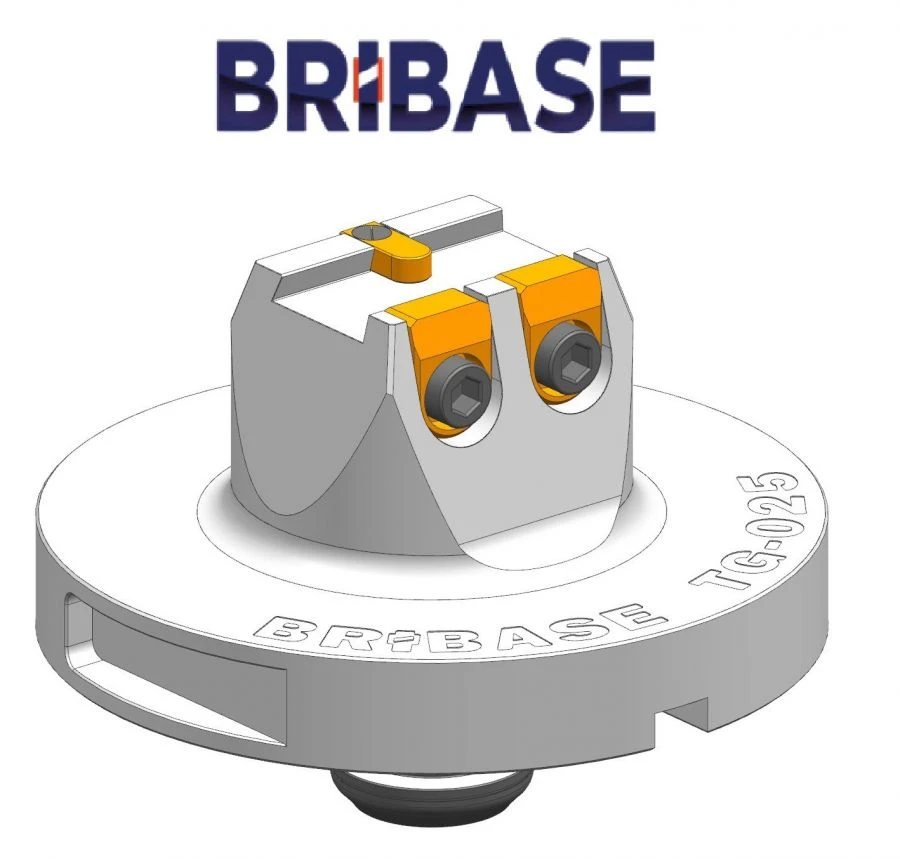

The TAIL GRIP is a quick-release device designed to clamp the workpiece by the allowance in the range from 2 mm to 4 mm using a dovetail-type technological element. The fixture is installed in the zero reference devices and clamped in them with the help of a setting pin with repeatability of setting in the range from 0 to 0.005 mm. The overall height of the fixture is 104.5 mm. The total diameter of the fixture is 140 mm.
