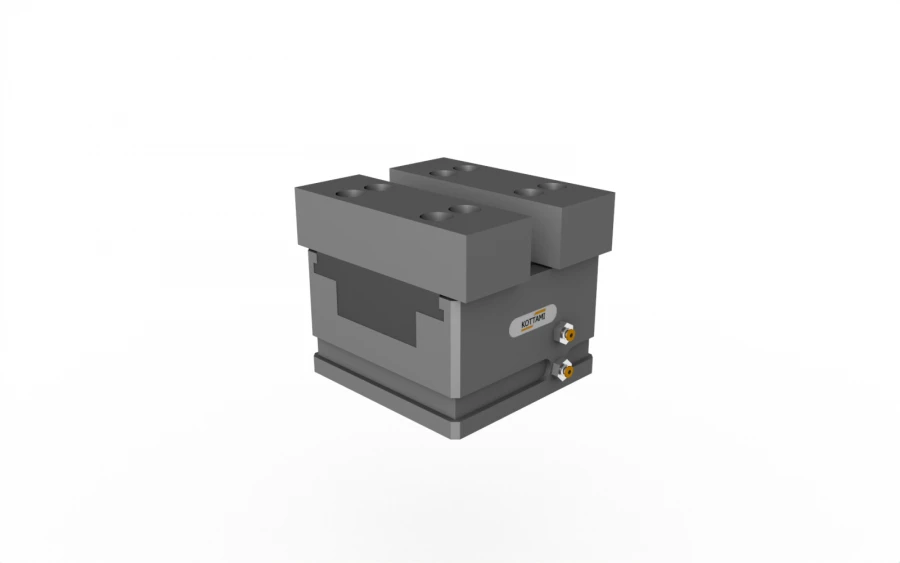

Pneumatic Self-Centering Vise for Precise Clamping on Milling Machines

Pneumatic self-centring vises are designed for fixing the part on milling machines. The mechanism of the vise is operated only when a prepared mixture of air with vapours of industrial oil is supplied. They provide automatic centring of the workpiece during its clamping.

Suitable for 3-, 4- and 5-axis CNC machining centres. Working pressure: 1 to 8 bar. Stroke of each jaw: 3 mm.

Dimensions: 200x181x165 mm. Clamping force 3000kg. Jaw width 200 mm.

Increase in productivity of the equipment on average by 50% due to easy and quick change of parts, reduction of fatigue of the worker, which makes it possible for one operator to service more machines. Stable clamping force. Possibility of use in automated systems of insertion and removal of workpieces in the machine.
