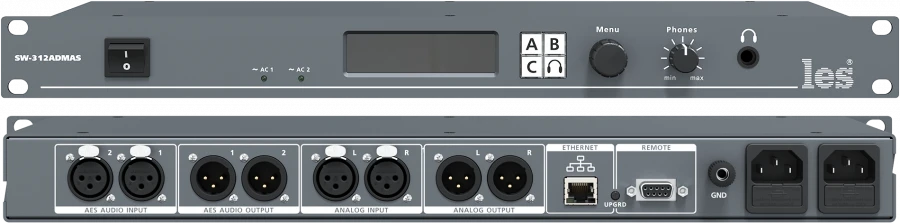

SW-312ADMAS - redundant switch for audio signals. 2 AES/EBU inputs, 1 analogue stereo.

The device is designed to switch 3 audio signals (2 AES/EBU and 1 analogue symmetrical stereo) to 1 output with branching to 2 AES. The digital inputs of the switcher have transformer galvanic isolation. The digitisation frequency is 32-192 kHz, digit capacity is 8-24 bits. The device has an analogue symmetrical output for control on external monitors. The switch has an OLED display for monitoring signal levels on inputs and outputs, as well as for controlling settings. Configuration of the device can be carried out from a personal computer connected to it via Ethernet. SW-312ADMAS can operate in automatic mode, can be switched using buttons on the front panel or from an external GPI, has two power supplies.
