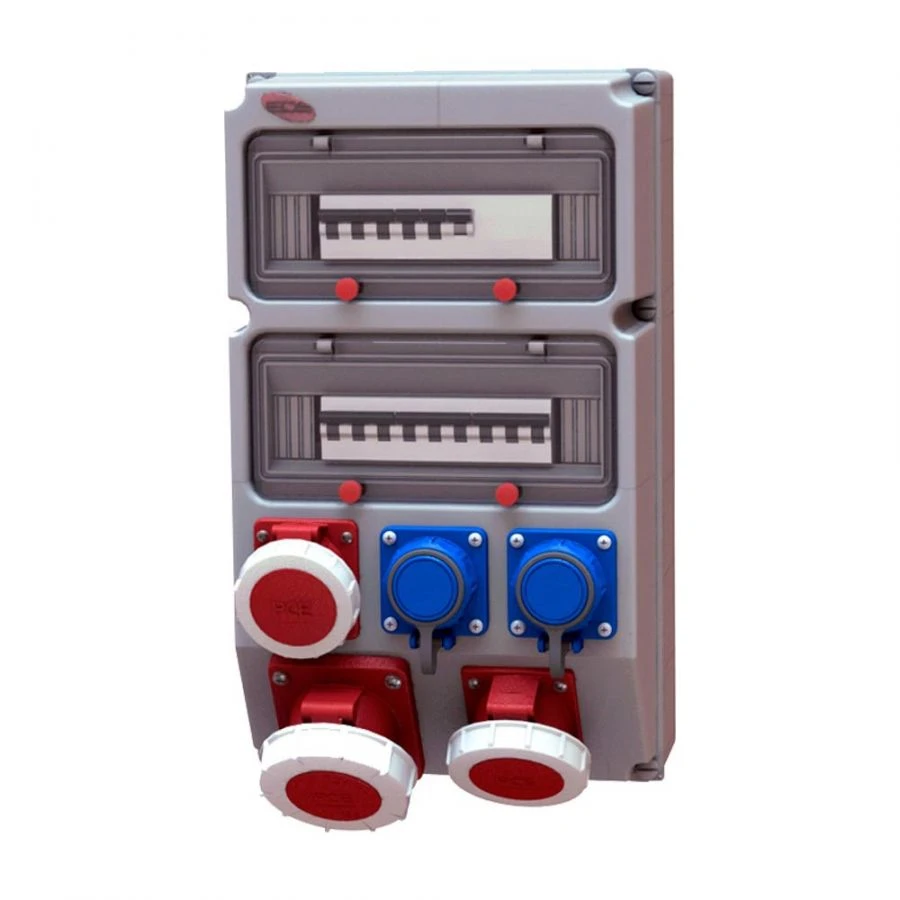

Surface-mounted distribution combination module (Panel with sockets) T P04.004

Combination of CEE and Schuko sockets in a hinged enclosure made of halogen-free plastic (ABS) with safety automatics located under the window with UV protection.
The switchgear is designed for professional activities of construction, production, repair and other organisations connected with simultaneous use of several units of power tools and electrical equipment.
Specification of the hinged switchgear combination module T P04.004:
Degree of protection: IP 65
Enclosure: ABS plastic (WxWxH) 504x297x177
Input: 35 mm² L terminal x 3 pieces; 35 mm² N terminal x 1 piece; 35 mm² PE terminal x 1 piece; M40 gland (for cable diameters 20-29 mm).
Connectors: Schuko PCE Blue IP67x 2 pcs.; CEE 32A 5Pin 400V IP67x 2 pcs.; CEE 63A 5Pin 400V IP67x 1 pc.
Automatics: Legrand 6kA 16A 1p x 2 pcs.; Legrand 6kA 32A 3p x 2 pcs.; Legrand 6kA 63A 3p x 1 pc.; RCD Legrand 4p 63A 30mA TX3 AC x 1 pc.
Rated voltage AC 380 V
Maximum power 2x 3,6 kW...
