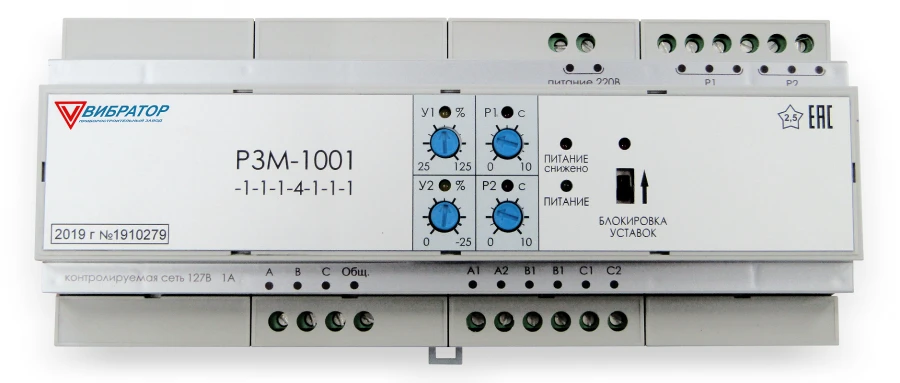

Power protection relay RZM-1001

Electrical Safety Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The power protection relay RZM-1001 is designed for signalling the deviation of the effective power value in the controlled power network from the nominal value exceeding the limits set by the setpoints. The relay is designed for operation in three-phase AC networks. The relay can be designed for the following network configurations: "star" with isolated (earthed) neutral and "delta". Frequency of the controlled network: 50 Hz (including 60 Hz) or 400 Hz. Power consumption 10 VA. IP20; weight 0,5 kg, mounting on DIN-rail.

Specifications

Power supply voltage 690 V

Rated fuse melting current, mA 500

Operating temperature 0...50 °C

Explosion protection type marking no

Provides explosion protection of the type no

Number of channels 1 pc

maximum operating current (max. 25 A

Operating voltage 690 V

Dimensions 97...212

Weight 7 kg

Warranty period of operation 5 a

Power consumption 10

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
