Insulation resistance monitoring relay for AC networks RKSI-1002

Electrical Safety Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

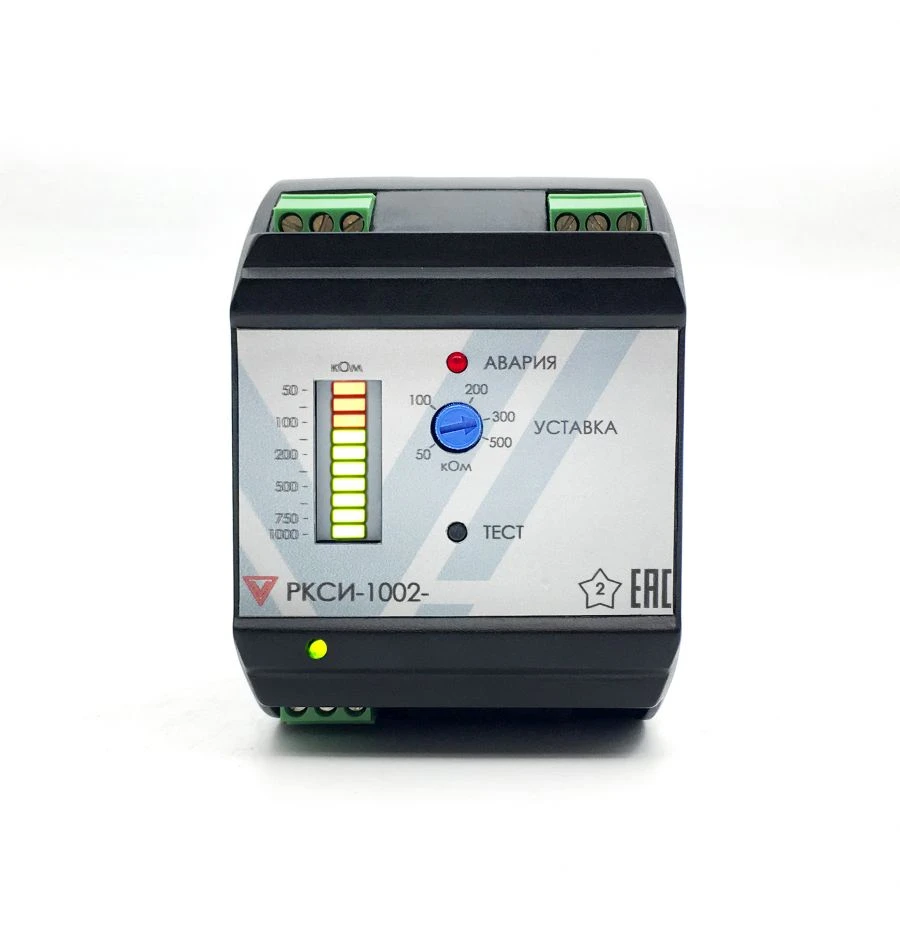

RKSI-1002 is designed to monitor the insulation resistance in AC networks under voltage, and to issue a signal on the reduction of insulation resistance below a predetermined threshold. The voltage of the controlled network RKSI-1002 - 127, 220, or 380 V (from minus 30% to plus 20% AC). The devices are made in a housing for installation on a DIN-rail.

Technical Specifications

Number of channels	1 pc
Provides explosion protection of the type	no
Explosion protection type marking	no
Operating temperature	-10...55 °C
Rated fuse melting current, mA	1000
Power supply voltage	380 V
Insulation resistance monitoring range, kOhm	50-500
Switched current	5 A
Output signal type	Dry contact for switching
Power consumption	6
Time to establish operating mode	3
Degree of protection	IP20
Overall dimensions, mm	70,5 x 100 x 102
Weight	0.6 kg
Dimensions	70.5...100
Operating voltage	380 V
maximum operating current (max.	0.05 A

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
