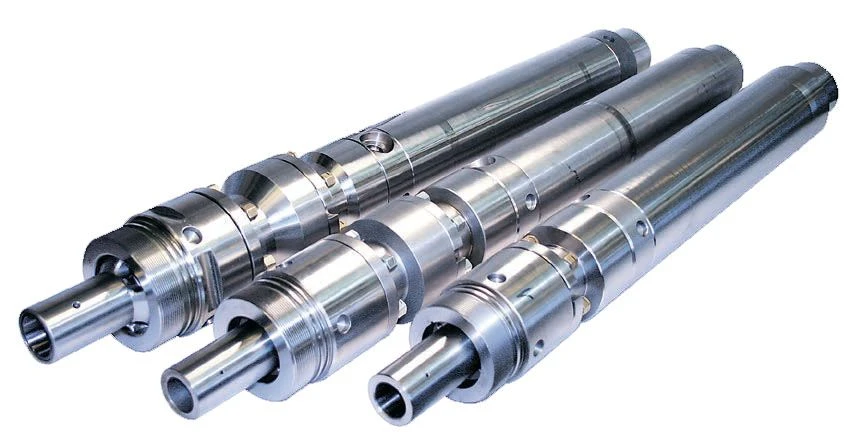

Submersible telemetry systems "Elekton-TMS"

Advanced Measurement Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

System of submersible telemetry "ELECTON-TMS" is designed to measure downhole parameters and parameters of pumping units in oil producing wells.
pumping units in oil producing wells.
The system consists of ground and submersible parts. The ground unit measures the insulation resistance of the communication circuit with the submersible part of the system.
part of the system. The submersible unit measures downhole parameters.
The ground unit processes the information transmitted by the submersible part of the system, records and transmits it to the controller.
control station of "ELECTON" series or other devices the current values of downhole parameters.

Specifications

Level of vibration acceleration of PDE in radial and axial directions, m/s2 0...30

Reservoir fluid pressure at pump inlet 0...60 MPa

Temperature of formation fluid at pump intake 0...150 °C

Температура масла ПЭД 0...200 °C

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Permissible part weight 25.9 kg

Z-axis travel range 0...30 mm

Insulation resistance, kOhm 10...9999

Y-axis travel range 0...30 mm

Linear displacement sensor resolution (µm) 0.1

Number of simultaneously and coherently controlled coordinates 2 pc

Limits of permissible absolute error of volumetric measurements MPEE, µm 1.5

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
