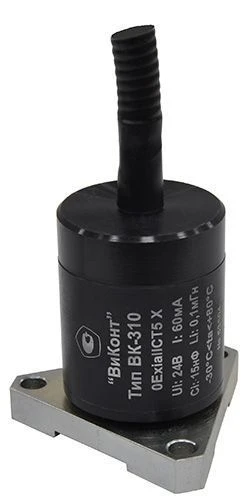

Piezoelectric vibration transducers with preamplifiers VK-310 series

Vibro-converter piezoelectric with preamplifiers series VK-310 is a transducer inertial type and use direct piezoelectric effect. Vibration transducers are available in the following versions: VK-310, VK-310A, VK-310S, VK-310S-2, VK-310NS, VK-312, VK-312S, VK-312S-1, VK-315A, VK-315S and VK-315S-1. Vibration converters ??-310, ??-310A, ??-310S, ??-310S-2, ??-310NS consist of primary measuring converters (sensors) and built-in preselectors assembled in one case. Vibration converters ??-312, ??-312?, ??-312?-1, ??-315?, ??-315? and ??-315?-1 consist of piezoelectric sensors and remote preselectors connected by vibration-resistant cable in a metal sleeve. The measured parameter is the instantaneous value of vibration velocity in the operating frequency range. The output is an AC signal proportional to the instantaneous value of vibration velocity. Explosion protection marking 0ExiaIICT5 X. Connection via connector type 2??14, on request - connection ... .
