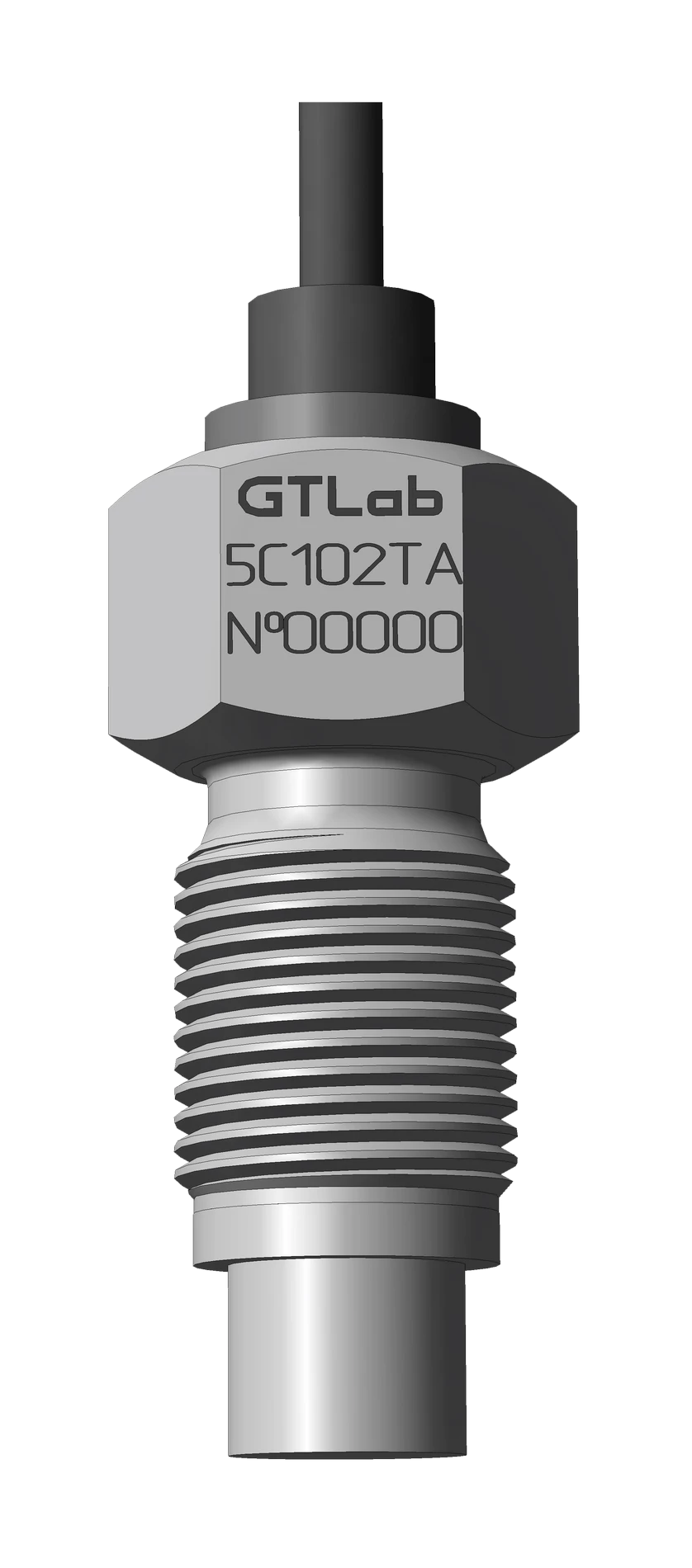

Dynamic pressure sensors 5C102TA-2500 -20

Vibration Measurement Equipment

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Dynamic pressure sensors with charge output are used for research and control of dynamic processes in internal combustion engines, gas turbine engines, hydraulic and pneumatic systems. They are designed to measure pressure in shock and detonation waves in gas and liquid media.

Specifications

Upper measurement limit 250 MPa

Conversion factor 200 pCal/MPa

Limits of permissible basic error reduced to the upper limit of measurement ± 2,5 %

Natural frequency in fixed state > 100 kHz

Acceleration sensitivity < 0.00005 MPa/g 1g = 9.807 m-s-2 or 10 m-s-2 = 1.02 g

Operating temperature range -60 ... +400 °?

Electrical capacity 200 ... 250 pF

Insulation resistance under normal conditions > 10,000 megohms

Sensing element material GTL

Housing material stainless steel

Membrane material stainless steel

Degree of protection against external influences IP68 Hermetically sealed (can be used at depths up to 50 m)

Weight (without cable and connector) 15 ?

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
