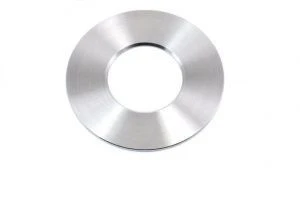

Standard Diaphragm Flow Restriction Device DN 50-400; PN 0-32 MPa

Available for Import

Standard Diaphragm Flow Restriction Device DN 50-400 for Fluid Control

Instrument Component Parts

Manufacturer: URALPROMDETAIL LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Diaphragm is a type of standard narrowing device (SD), made in the form of a thin disc with an orifice having a sharp rectangular (sometimes conical) edge on the side of the flow entrance. The purpose of the diaphragm is to measure the flow rate of the medium using the variable differential pressure method. The diaphragm is a chamberless diaphragm with an angular method of differential pressure sampling for high pressure over 10 MPa (installed directly in flanges equipped with annular chambers)

Specifications

Nominal diameter DN

50 to 400 mm

Maximum permissible operating pressure

Up to 32 MPa

Operating temperature

Up to 400 °C

Operating medium

Liquid, steam, gas
