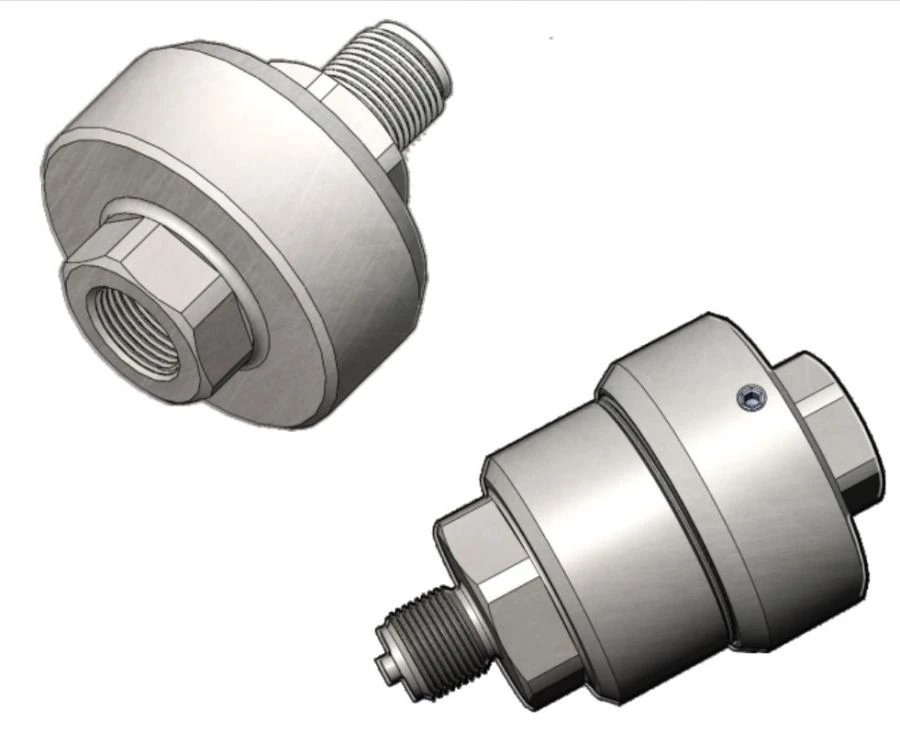

Type B Medium Separator for Process Protection and Instrument Safety

Instrument Component Parts

Manufacturer: ENERGO-PROM-RUS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Separator of media type B is manufactured with a socket connection to the process with a nominal pressure Ru 250 MPa (250kgf/cm2). It is designed to protect the sensitive element of the measuring device (manometer, sensor, regulator, etc.) from aggressive, highly viscous, contaminated, solidifying, polymerising working media and/or media with high temperature. The design is collapsible with the separating element internally located and replaceable. Can be filled with liquid either by vacuum or without vacuum equipment. Do not require additional adjustment or fine-tuning during commissioning

Specifications

Operating media

Any non-viscous aggressive ones

Process connection

Male or female threaded socket

Operating temperature range, ??

-50…+200

Diameter

53...68 mm
