Dampening Device Type PS.1 for Pressure Measurement Protection

Available for Import

Dampening Device Type PS.1 for Protecting Pressure Measurement Instruments

Instrument Component Parts

Manufacturer: ENERGO-PROM-RUS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

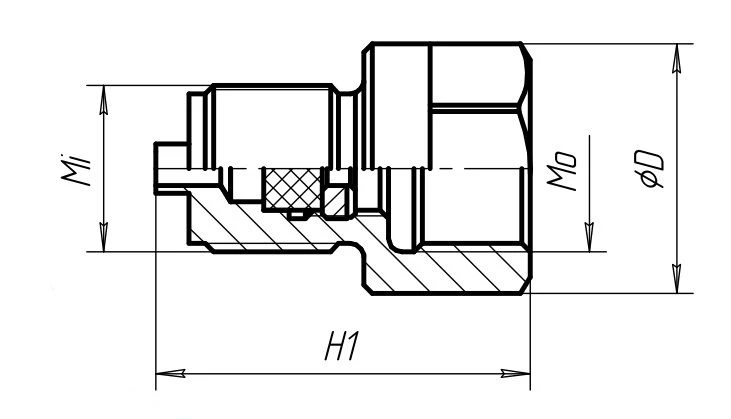

Designed to protect the sensitive element of the measuring device (pressure gauge, sensor, regulator, etc.) from the impact of water hammer and/or pulsations of the working medium. The design is collapsible. It consists of a body, a sleeve and replaceable filter-throttling elements.

The main difference from plunger and jet type dampers is 100% pulsation suppression. The main difference from porous and capillary dampers is the possibility of regeneration and reuse in case of clogging. Small size in contrast to volume type dampers.

Specifications

Operating media

Air/Gases/Vapour/Water/Oils

Connection to the measuring instrument

Female or male threaded connection

Ripple suppression efficiency, %

90…100

Operating temperature, ??

-40…+200

Upper measuring limit of the device, kgf/cm²

-1…1500
