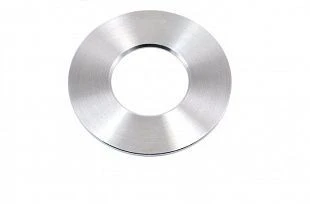

Standard Diaphragm DFC, DN 0-400, PN 0-10 MPa Available for Import

Standard Diaphragm DFC for Efficient Flow Control, DN 0-400, PN 0-10 MPa

Instrument Component Parts
Manufacturer: URALPROMDETAIL LLC
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Diaphragm is a type of standard narrowing device (SD) made in the form of a thin disc with an orifice having a sharp rectangular (sometimes conical) edge on the inlet side of the flow. The purpose of the diaphragm is to measure the flow rate of the medium using the variable differential pressure method. DFS - diaphragm with flanged differential pressure sampling. pressure. It is used at the nominal bore diameter from 50 to 400 mm inclusive and overpressure in the pipeline not more than 10 MPa..

Specifications

Nominal diameter DN
Up to 400 mm
Maximum allowable working pressure
Up to 10 MPa
Operating temperature
Up to 400 °C
Operating medium
Liquid, steam, gas
Save Your Time

Share your requirements for a quick response!

Instant response in 15 minutes
Best wholesale prices guaranteed
Direct from manufacturer

Delivery & Payment

Shipping Terms

FOB Novorossiysk, Russia CIF Available to major ports worldwide EXW Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination) Air freight: 14-21 days (for urgent orders)

Payment Methods

Letter of Credit (L/C) Wire Transfer (T/T) Escrow Services
