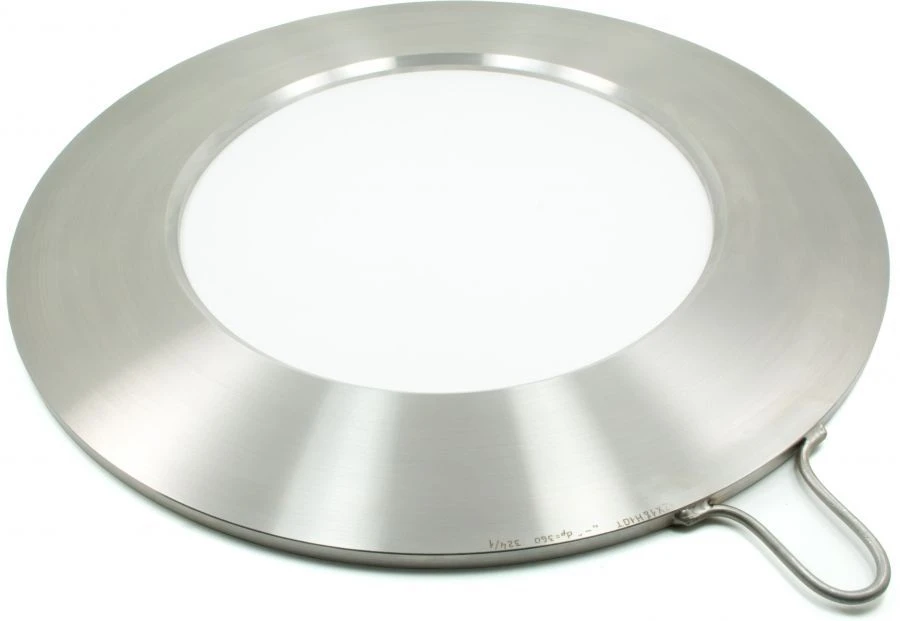

Standard Diaphragm for Non-Chamber Applications DBSC DN 300 – DN 3000 mm

$90 - $6,000 USD

MOQ: 1 pieces

Key Features

Nominal diameter: 20 to 3000 mm

Nominal pressure: up to 40 thous. t storage

Diaphragm material: Steel 12?18?10? GOST 5632

Assigned service life: 20 kVAr

Supplier Information

ITek BBMV LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

Creating differential pressure when measuring the flow of liquids, gases, water vapour by the method of variable differential pressure.

- Installed in pipeline flanges with or without ring chambers;
- Nominal pipeline diameter from 20 to 3000 mm;
- Nominal pressure in the pipeline up to 40 MPa;
- Angular, flange, three-radius methods of pressure sampling.
