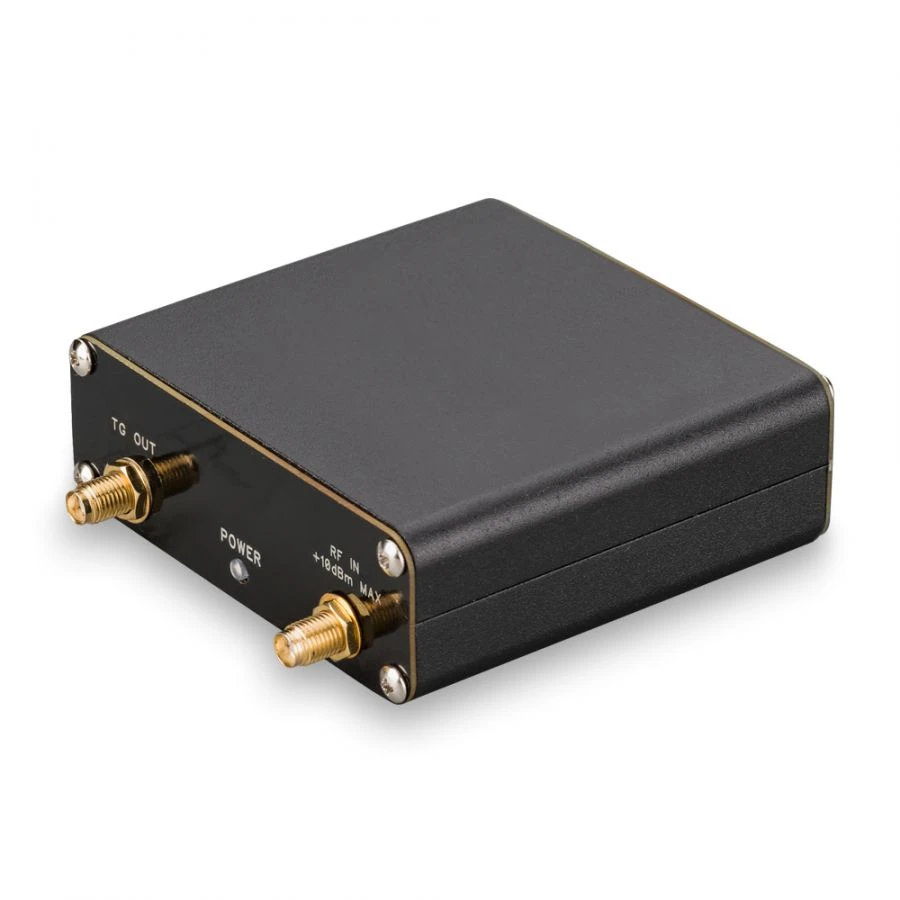

Spectrum analyser Arinst SSA-TG LC R2

Arinst SSA-TG LC R2 is a panoramic spectrum analyser with built-in signal generator, which is designed to display signal spectra in the main frequency range from 36 to 3000 MHz.
The device allows you to determine the amplitude and frequency of spectral components included in the signal.
An important feature of the device is the presence of an additional function of signal generator, which allows you to measure the AFC of active devices, such as a repeater, measure the VSWR of antennas, etc.
Spectrum analyser displays signal spectra of all common technologies: Wi-Fi, 2G, 3G, 4G, LTE, CDMA, DCS, GSM, GPRS, GLONASS, etc.
In addition to the main frequency range of 36-3000 MHz the device has an additional extended range from 3000 to 5990 MHz, in which the measurement error is higher than in the main range. When working in the extended range, the instrument should be used only for displaying signals for their evaluation, but not for measurements.
