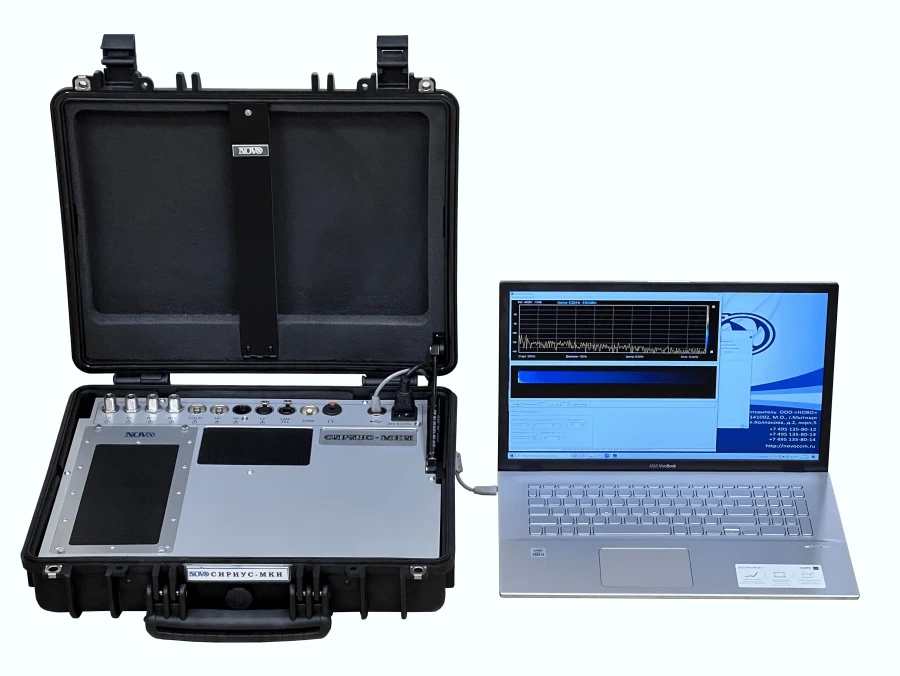

Hardware-software complex SIRIUS-MKI

Electrical Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The software and hardware complex is designed for special studies of the main and auxiliary technical means and systems, to perform work to assess the effectiveness of acoustic speech information protection in technical means and systems, aimed at identifying technical channels of leakage of protected information and assessing the compliance of information protection with the requirements of regulatory and legal documents in the field of information security

Specifications

Limits of permissible absolute error of setting the power level of the output signal (in the frequency range from 0,1 Hz to 1000 1 dBm

Upper limit of the frequency range of the output signal 13000

Lower limit of the output frequency range 0.1

Power spectral density of phase noise (at 1 GHz frequency, at 1 kHz detuning), not exceeding -110 dBn/Hz

Maximum output signal power level (in the frequency range from 0,1 Hz to 10000 MHz), not less than 15 dBm

Input signal frequency range 0.009...14500

Minimum frequency bandwidth of the measuring filter 1.5

Average displayed intrinsic noise level, not more -155 dBm/Hz, in the frequency range from 6000 to 10000 MHz

Power spectral density of phase noise (at 100 MHz, at 1 kHz detuning), not more -120 dBn/Hz

Limits of permissible error of input signal level measurement (in the frequency range from 10 kHz to 10000 MHz), not more than 1 dBm

Dynamic range of measurement of signal levels, not less than 100

Output signal frequency range 20...20000

Maximum power level of the output signal (in the frequency range from 100 to 20000 Hz, with additional amplifier switched on) 25 dBm

Calibration coefficient determination error, not more than 2

Type of polarization linear

Calibration coefficient, max. 30 dB (1/m) at 1 GHz

Lower limit of the operating frequency range, max. 0.009

Lower limit of the operating frequency range, max. 1 GHz

Gain factor, not less (calibration factor, not more) 8 dB (42 dB) at 10 GHz

Upper limit of the operating frequency range, not less than 10 GHz

Upper limit of the operating frequency range, not less than 10000

Error of gain determination or calibration, not more than 2

Type of polarization linear

Calibration determination error, not more than 2

Lower limit of the operating frequency range, max. 0.009

Upper limit of the operating frequency range, not less than 30

Lower limit of the operating frequency range, max. 0.009

Upper limit of the operating frequency range, not less than 10000

Type of polarization linear

Error of gain determination or calibration, not more than 2

Gain factor, not less (calibration factor, not more) in the range from 1 to 10 GHz 8 dB (42 dB) at 10 GHz

Calibration factor in the frequency range from 100 MHz to 1 GHz, not more 30 dB (1/m) at 1 GHz

Operating voltage (DC component), max. 100 V

Upper limit of the operating frequency range, not less than 400

Lower limit of the operating frequency range, max. 0.009

Maximum current 10 A

Upper limit of the operating frequency range, not less than 400

Lower limit of the operating frequency range, max. 0.009

Level of generated current, not less than 5 dB (mA)

Upper limit of the operating frequency range, not less than 400

Lower limit of the operating frequency range, max. 0.009

Output impedance SBVVBG ohm

Calibration coefficient determination error, not more than 3

Calibration coefficient (at 50 ohm load), max. 0 dB(1/ohm) between 200 and 400 MHz

Instability of integral sound pressure level during continuous operation, not more than 2

Magnitudes of the scattering fields (field strength), at maximum input power, at a distance of 1 m along the transmitter axis, n 20 µA/m for magnetic field

Уровень октавного звукового давления, создаваемого на расстоянии 1 м, не менее 105 dB for fifth, sixth and seventh octaves

Frequency response unevenness in octave bands, no more than 6

Upper limit of the operating frequency range, not less than 11200

Lower limit of the operating frequency range, max. 100

Unevenness of AFC in sound pressure, not more 2

Sensitivity by free field, not less than 10 mV/Pa

Upper limit of the operating frequency range, not less than 11200

Lower limit of the operating frequency range, max. 100

Upper limit of the operating frequency range, not less than 11200

Error of sound pressure level measurement, not more 2 dB

Sound pressure measurement range (RH 2x10-5 Pa) 20...120

Lower limit of the operating frequency range, max. 0.009

Upper limit of the operating frequency range, not less than 400

Wire brands TSV, NYM, KSPEV, TPP, UTP5e

Length of each wire, no less than 5 m

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
