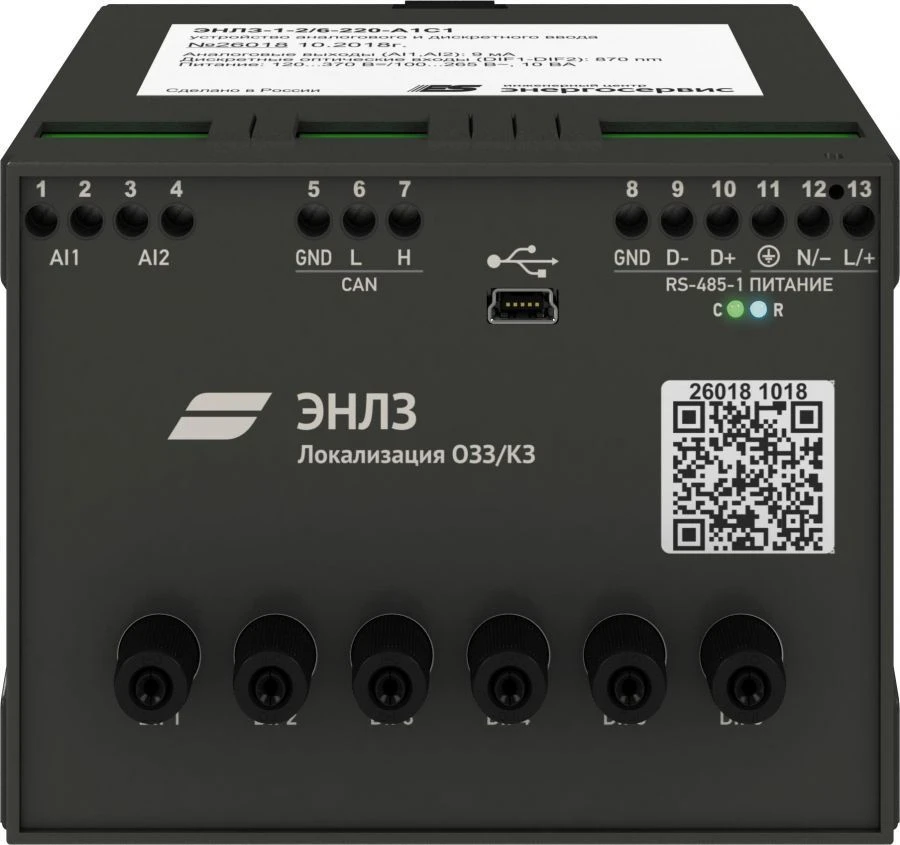

Device for localisation of short-circuit faults / short-circuit protection ENLZ-1
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The ENLZ devices are designed for short-circuit fault detection by means of single-phase short-circuit current sensors with optical output, as well as detection of single-phase earth faults by means of measuring synchronised vectors of currents and/or voltages of short-circuit faults. One ENLZ device can monitor up to two feeders. In combination with ENKM-3 data acquisition devices and WEB-OIC software complex, ENLZ allows to determine the type and area of failure in 6/10 kV distribution networks.
Specifications
Analog inputs
current: Inom - 8 mA, Imax - 16 mA; voltage: Unom - 3 V, Umax - 6 V
Optical inputs
POF 980/1000 µm fibre, wavelength 400...1000 nm, d - 2.2 mm
Interfaces and exchange protocols
RS-485: MEC 60870-5-101; CAN
Nutrition
18...36 VDC or universal 120...370 VDC/ 100...265 VAC (45...55 Hz), 6 VA
Operation and design
-40 to +70°C, 75 × 100 × 120 mm (IP40), DIN rail mounting
