Available for Import
Special check valve KOS 200-1M4
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided

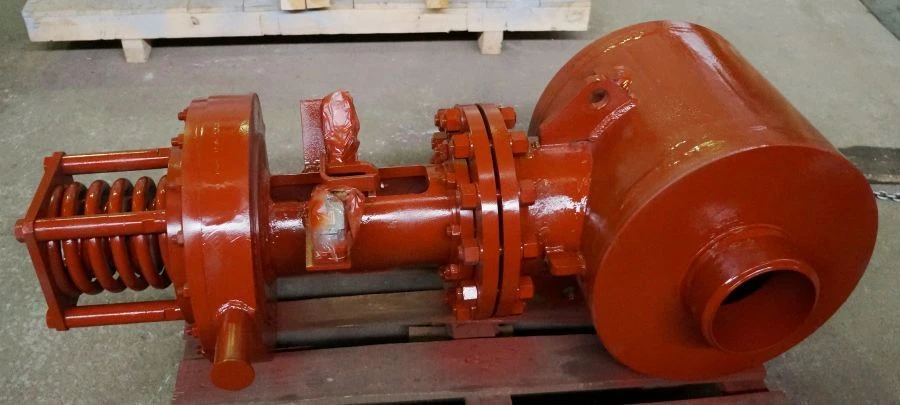

The valve consists of a housing in which the valve shut-off organ (plate) is located and a servomotor mounted on top of the housing cover The plate moves freely in the vertical plane around the axis of its mounting in the housing. The servomotor is not rigidly connected to the valve plate and acts on it via the stem and lever.
The valve is opened by the direct steam flow from the turbine. The valve is closed by the reverse steam flow, which occurs during load shedding. The servo motor insures the valve closure by creating additional force on the shut-off organ - the plate.
Technical Specifications
| Climatic version | ?1 |
|---|---|
| Material | Steel 20K |
| Weight | 645 kg |
| Type | Special check valve |
| Connection type | Welded |
| Housing material | Steel 20K |
| Maximum pressure, MPa | 5 MPa |
| Joining | Welded |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
