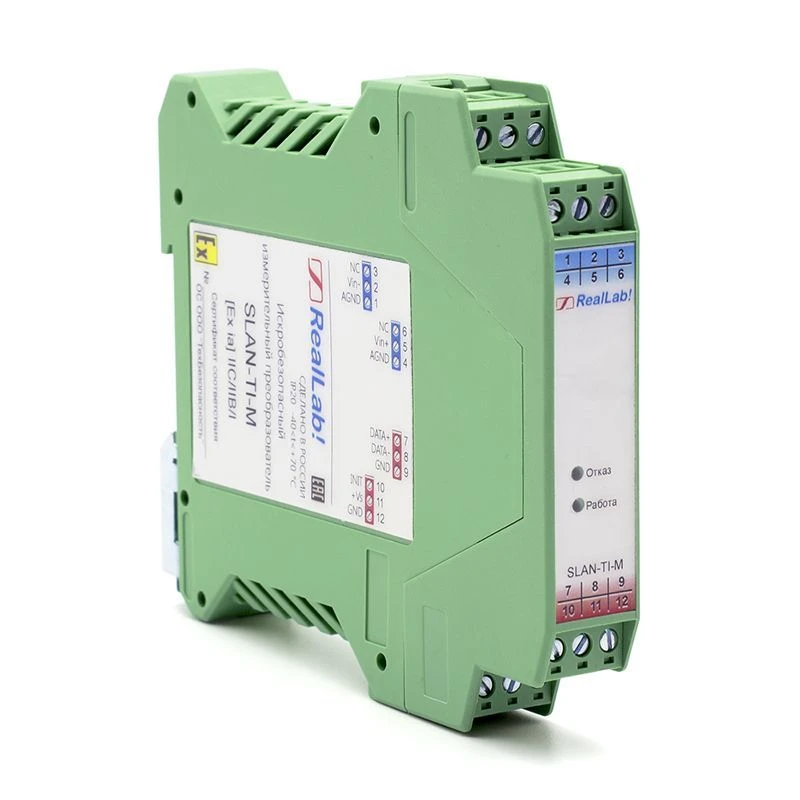

SLAN-TI-M Intrinsically safe transmitter of thermocouple signals with RS-485 output (MODBUS RTU)

Purpose: intrinsically safe transmission of thermocouple signals with conversion to temperature value or analogue signals from hazardous area to explosion-proof area
Intrinsic barrier type: active with galvanic isolation
Signal type: voltage
Connection: 1 differential channel for analogue input of thermocouple signals of types J (TZK), K (TCA), B (TPR), L (TCC), E (TCCn), S (TPP 10%), R (TPP 13%), N (TNN), T (TMK).
Measurement error: not more than ±2.5 °C for range T (TMK); ±3 °C for ranges J (TCA), L (TCC); ±3.5 °C for ranges K (TCA), E (TCCn); ±4 °C for ranges B (TPR), S (TPP 10%), R (TPP 13%), N (TNN);
Digit capacity: 16 digits (ADC)
Upper limit of signal variation range:±2.5 V
Explosion protection marking: [Ex ia] IIC/IIB/I
Connection interface: RS-485
Supply voltage: 10-30 V
Power consumption: not more than 1 W
Operating temperature range: -40°C to +70°C
Overall dimensions (HxWxH): 99x17.6x113.7 mm
Degree of protection: IR20
Warranty: 18 months
