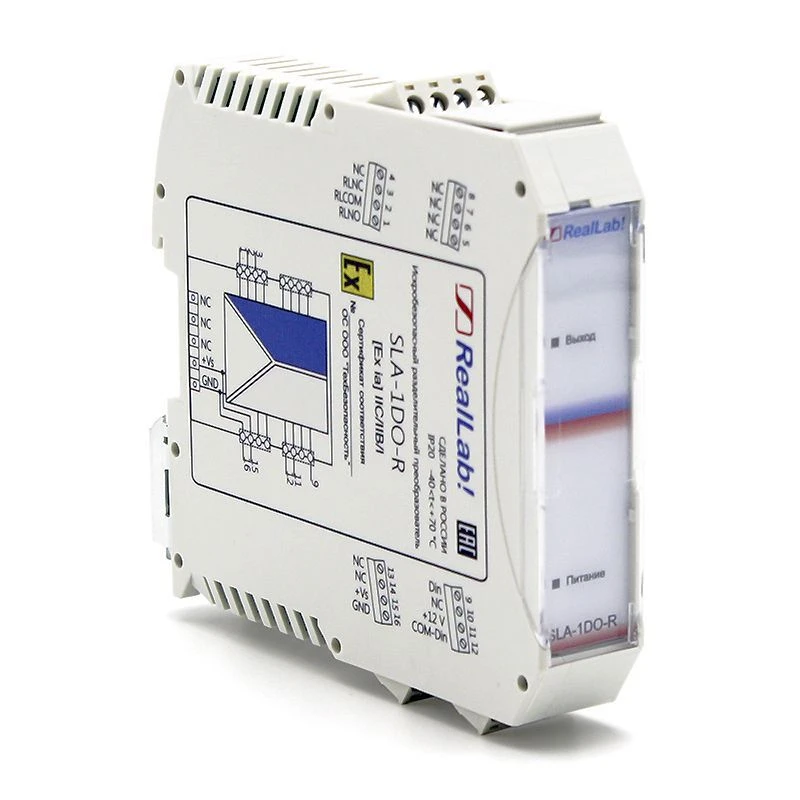

SLA-1DO-R Intrinsically safe binary signal divider converter with relay output

Purpose: intrinsically safe transmission of discrete signals from the explosion-proof zone to the explosion-proof zone and their conversion into a relay output
Intrinsic barrier type: active with galvanic isolation
Type of signal/sensor: "discrete logic" or "dry contact"
Number of sensors to be connected: 1
Signal parameters or connection method: 0-30 V
Number of outputs: 1
Relay output parameters: 4A/30V; 0,5A/250V
Galvanic isolation: input, output, power supply - 2500V
Power supply voltage: 10 - 30 V
Power consumption: not more than 1.5 W
Explosion protection marking: [Ex ia] IIC/IIB/I
Protection class of a person against electric shock: 01 according to GOST 12.2.007.0-75
Operating temperature range: -40°C to +70°C
Average MTBF: 100 000 h.
Average service life, not less than 12 years
Overall dimensions (HxWxH): 99.4x22.5x109
Mounting: on DIN-rail
Degree of protection: IR20 according to GOST 14254-2015
Warranty: 18 months
