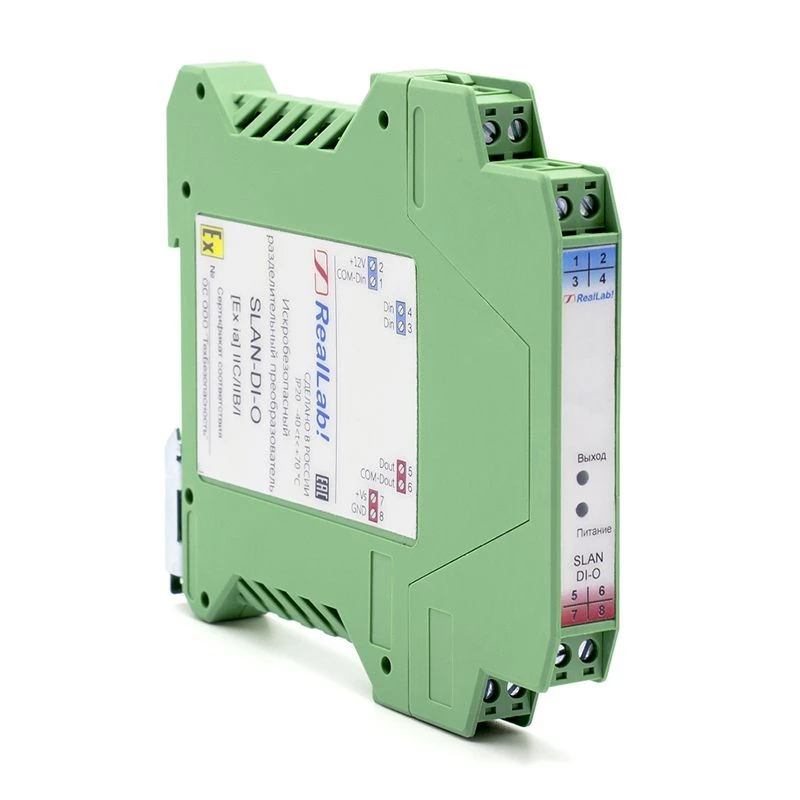

SLAN-DI-O Intrinsically safe discrete signal separator converter with open drain output

Purpose: intrinsically safe transmission of discrete signals from hazardous area to explosion-proof area
Intrinsic barrier type: active with galvanic isolation
Signal type/sensor: "discrete logic" or "dry contact".
Number of sensors to be connected: 1
Signal parameters or connection method: 0-12 V
Number of output channels: 1
Galvanic isolation:input, output isolation - 2500 V
Types of protection:against wrong polarity connection of power supply source
Power supply voltage: 10-30 V
Power consumption: not more than 1 W
Explosion protection marking: [Ex ia] IIC/IIB/I
Operating temperature range: -40°C to +70°C
Average MTBF: 120 000 hrs.
Average service life, not less than: 12 years
Overall dimensions (HxWxH): 99x12.6x113.6
Mounting: on DIN-rail
Degree of protection: IR20
Warranty: 18 months
