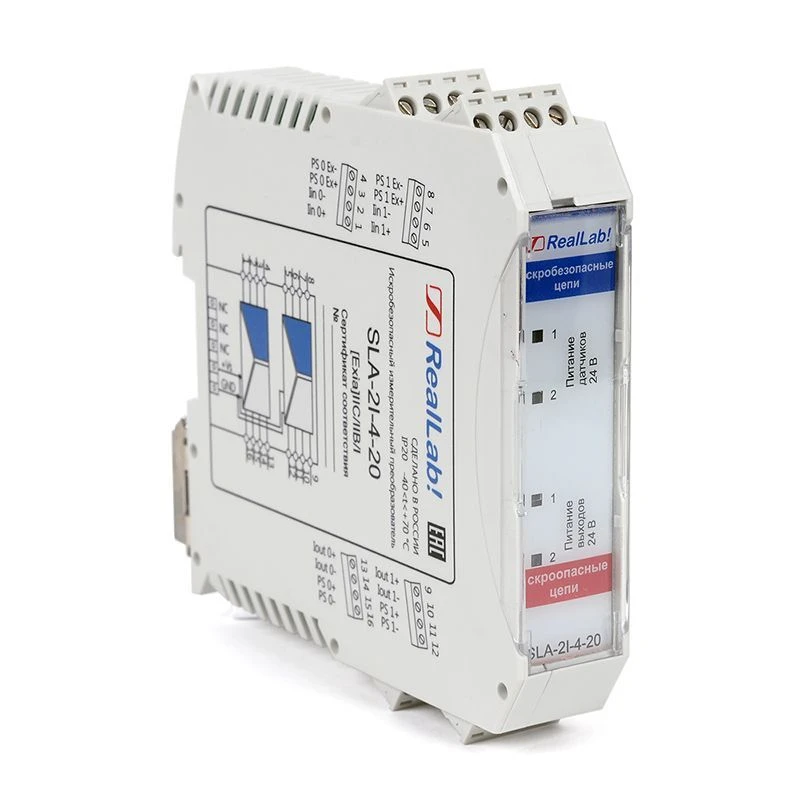

SLA-2I-4-20 Intrinsically safe measuring transmitter of signals in 4-20 mA standard

Purpose: intrinsically safe transmission of current signal from hazardous area to explosion-proof area
Type of intrinsic barrier: active with galvanic isolation
Signal type: current 4-20 mA
Number of connected devices with 4-20 mA output:2
Signal parameters or connection method: current loop
Upper limit of signal variation range: 20 mA
Current transfer error: max 0.1 %
Supply voltage: 10 - 30 V
Power consumption: 2 W max.
Explosion protection marking: [Ex ia] IIC/IIB/I
Protection class of a person against electric shock: 01 according to GOST 12.2.007.0-75
Operating temperature range: -40°C to +70°C
Average MTBF: 100 000 h.
Average service life, not less than 12 years
Overall dimensions (HxWxH): 99.4x22.5x109
Mounting: on DIN-rail
Degree of protection: IR20 according to GOST 14254-2015
Warranty: 18 months
