Available for Import

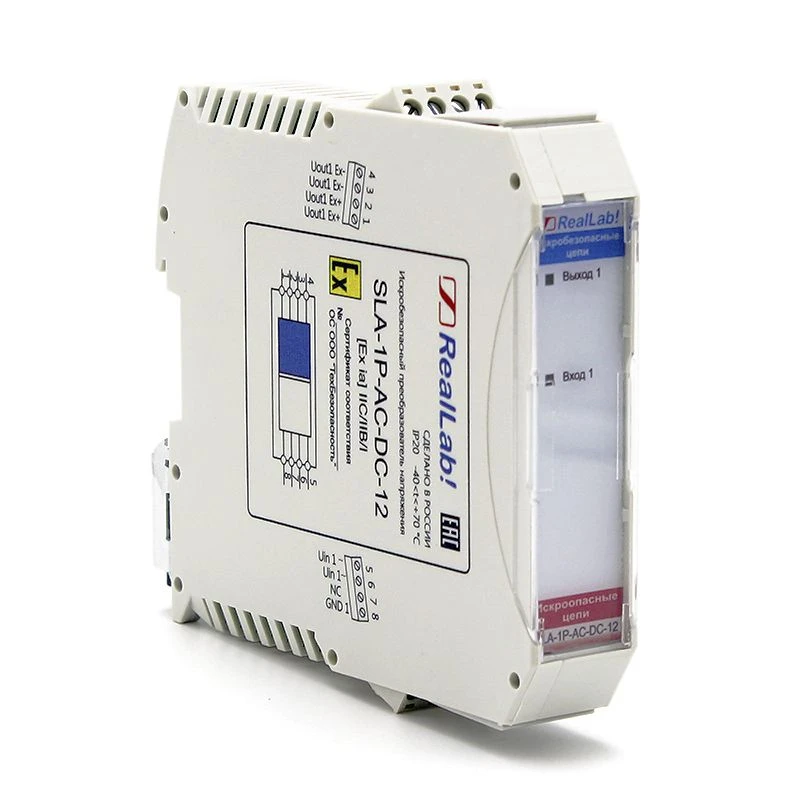

SLA-1P-AC-DC-12 Single-channel intrinsically safe power supply unit
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Purpose: power supply with intrinsically safe circuits for sensors located in intrinsically hazardous area GOST R 51330.10 (IEC 60079-11-99), GOST 30852.10-2002 (IEC 60079-11-99)Type of explosion protection: intrinsically safe electrical circuit of level "ib "Explosion protection marking: [Exib]IExplosive mixtures: according to GOST 30852.11-2002 categories I, IIA, IIB/IIC ExibIIBPower supply voltage: ~85-250 V, 50 HzPower consumption: 4 WOutput voltage: 12 VLoad current:up to 150 mAGalvanic isolation: 3000 VTemperature:operating temperature range from -40C to +70CShell protection degree: IP20 (GOST 14254-2015)Design: slot designMounting: on DIN-railDimensions (HxWxG): 109x22,5x113 mmWeight: not more than 0,2 kgMaintenance of failure: 100 000 hService life: 20 yearsWarranty: 18 months
Specifications
Overall dimensions (HxWxH):
99.4x22.5x109. mm
Weight, not more:
200 g
Average service life, at least
20 a
Average MTBF:
100000
Guarantee:
18
Type of product according to PP RF 616
Other tools and instruments for measurement, inspection and testing
