Single-cylinder installation for determination of cetane numbers of diesel fuels, model IDT-90

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

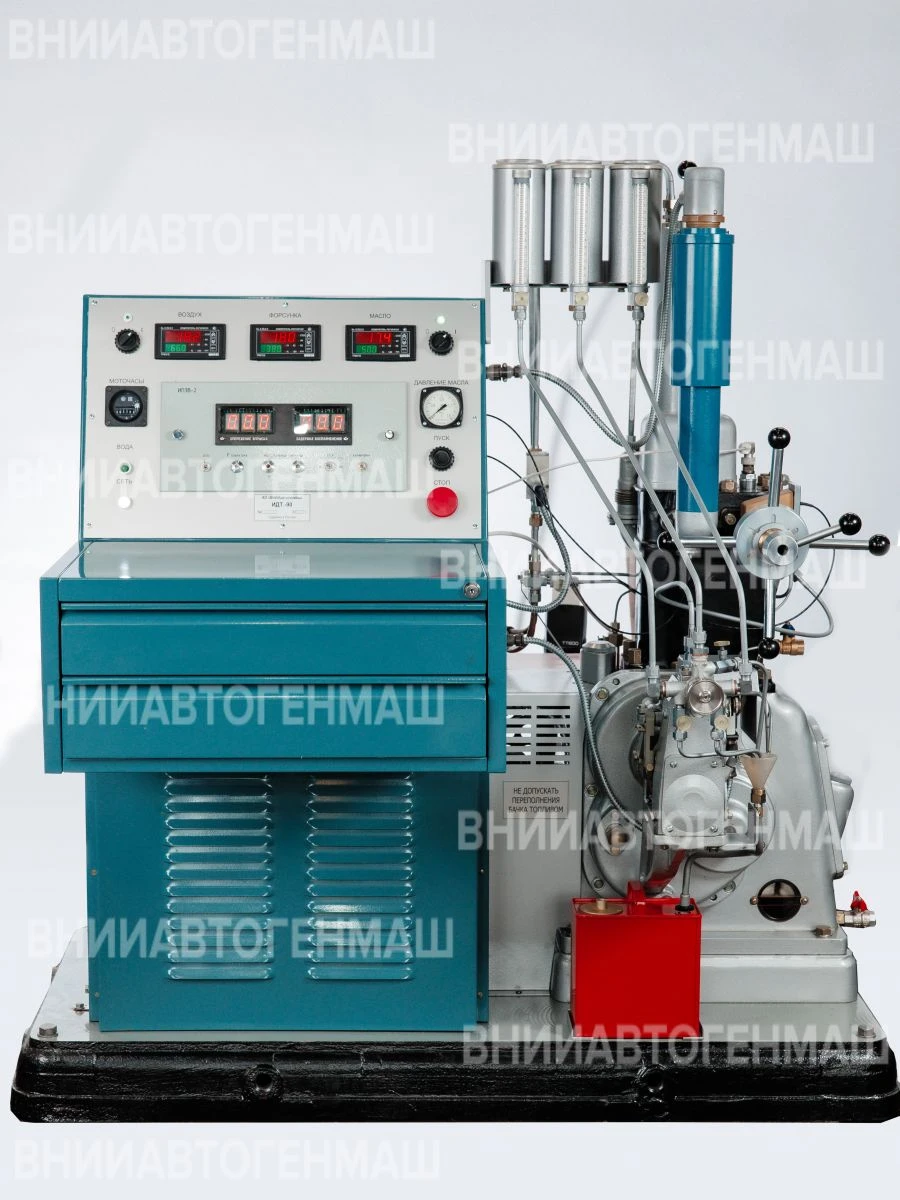

Determination of cetane numbers of diesel fuels and their components by the method of coincidence of flash according to GOST 3122-67, GOST R 52709-2007, GOST R 52709-2019, GOST 32508-2013, GOST R 55475-2013, GOST 305-2013, GOST ISO 5165-2014.The range of determination of cetane numbers from 20 to 80. The essence of determining the cetane number by the flash coincidence method is to compare the autoignitability of the test fuel with the autoignitability of reference fuels with known cetane numbers under standard test conditions.The unit consists of a single-cylinder four-stroke pre-chamber piston internal combustion engine with variable compression ratio, driven by an asynchronous AC electric motor, control panel with instrumentation, engine systems and auxiliary equipment, and auxiliary equipment.

Technical Specifications

Type of product according to PP RF 616	Other tools and instruments for measurement, inspection and testing
Additional option	комплектация установок лабораторно-информационной системой (ЛИМС/LIMS) с возможностью передачи данных на персональный компьютер
Warranty life of the plant	2000 motor hours
Installation weight	850 kg
Overall dimensions (DxWxH)	1270x1340x1470 mm
Maximum electrical power consumed by the system	8 kW
Power supply voltage (at 50 Hz AC frequency)	380 V
Temperature of the intake air	65±1, maintained automatically °C
Coolant temperature	98...102 °C
Fuel injection pressure	9.96...10.64 MPa
Number of engine revolutions (when running on fuel)	891...909
Compression ratio	(kg-c/cm²): Variable 7 to 23
Cylinder displacement	0.652 l
Cylinder diameter	0.652 mm
Determination range of cetane numbers	20...80
Engine	Single-cylinder four-stroke pre-chambered with compression ignition

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
