Available for Import

Single-channel programme temperature controller - electronic recorder with graphic display TERMODAT - 16E6-A

Automatic Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

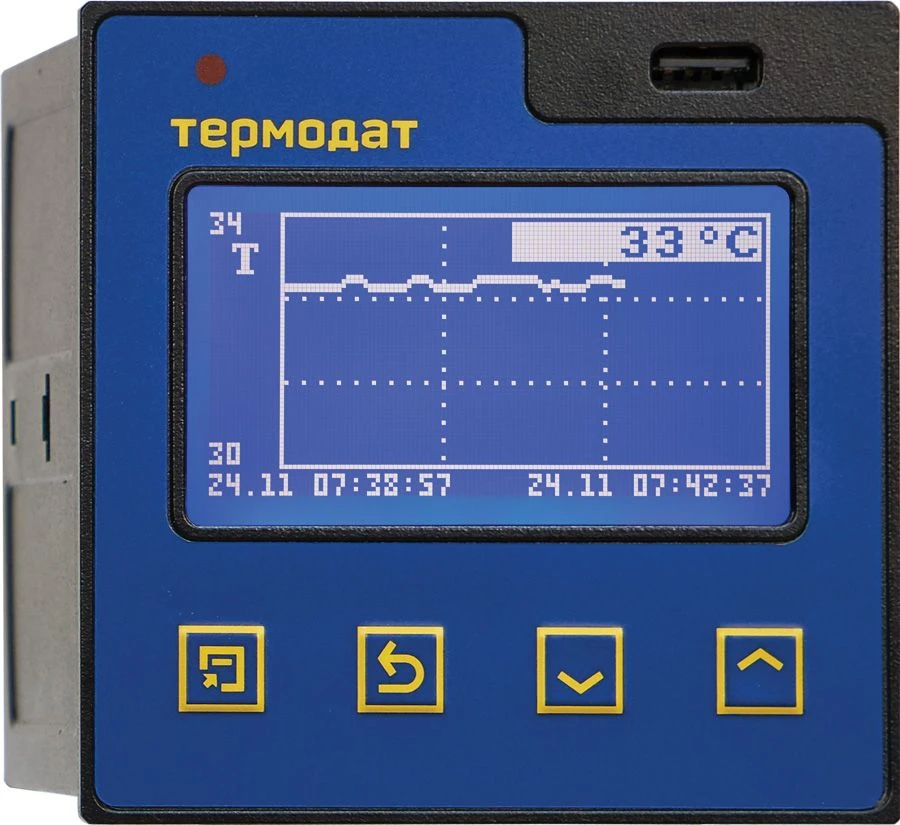

Single-channel programme temperature controller - electronic recorder with graphic display. The device has a universal input designed for connection of thermocouples, thermoresistors, sensors with current output. Outputs: 2 relays with changeover contact, 1 relay-simistor, 1 transistor, 1 analogue output. The device is equipped with a USB connector on the front panel for quick saving of archive data to a Flash memory stick. The connector also allows to transfer parameter configuration, copy programmes from one device to another, update software without the need to dismantle the device. The Ethernet port is intended for integration of the device into a local network. RS-485 is used for networking of devices and for connection of devices to third-party controllers or PLCs. Thermodat-16E6-A-F-Eth can control both heater and cooler, or both heater and cooler simultaneously. Control laws: PID, positional (On/Off), possibility of controlling the electric gate valve drive.

Technical Specifications

Power supply voltage	230 V
Interface type	RS-485; Ethernet
Availability of a memory card slot	Armoured glass
Number of channels	1 pc
Interface type for communication with I/O modules	RS-485
Switching voltage range	B1/B8 2100/900 MHz V
Maximum switched current	3 A
Number of Ethernet ports	1 pc
Number of interfaces RS-485/422/232	1 pc
Compatible with modules	no
Communication speed with I/O modules	115200
Composition	no
Software platform	no
Hardware platform	no
Structure	no
Type of input signals	no

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
