Available for Import
Single-channel panel units F1775-AD
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

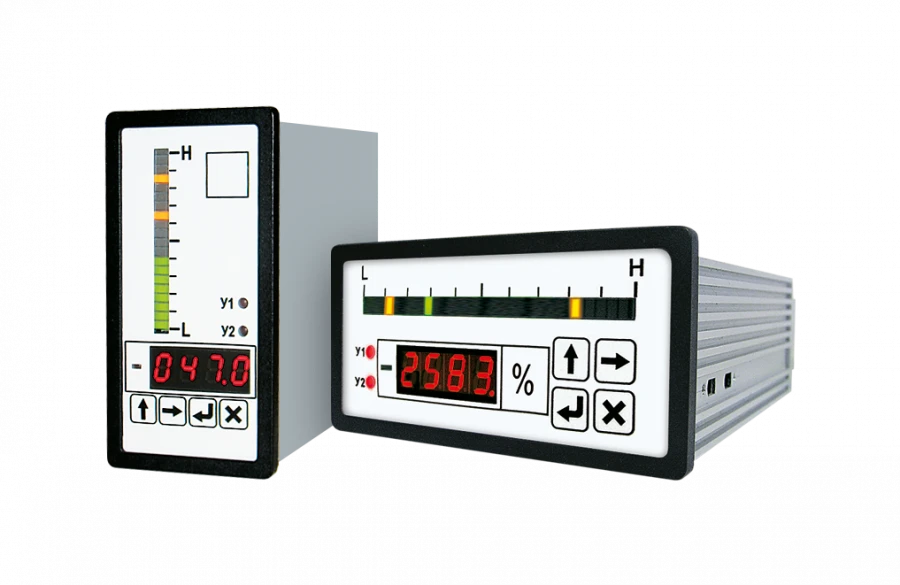

F1775-AD - universal digital measuring instruments designed to work with sources of unified signals of direct current and voltage, with resistance thermocouples and thermocouples. The devices provide control and 2- or 3-position regulation of technological processes parameters.
Specifications
DC voltage measurement range, mV
0-100, (100)-100
DC voltage measurement range, V
0-1, 0-10, 2-10, (1)-1, (10)-10
Current measurement range, mA
0-5, 0-20, 4-20, (5)-2, (20)-20
Temperature Sensor Type (TC)
50M, 50P, Pt50, 100P, Pt100
Type of temperature sensor (TP)
K, L
Supply voltage, V
24V, 220V
Interface
RS-485, Modbus RTU
Current output, mA
4-20, 0-5
Built-in power supply for external inverters
DC power supply
Power supply voltage of external converters, V
24 or 36 VDC
Operating temperature range
1...50 °C
Degree of protection
IP 54 on the front panel or on the entire enclosure
Housing material
Metal
Setpoints
2 pc
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
