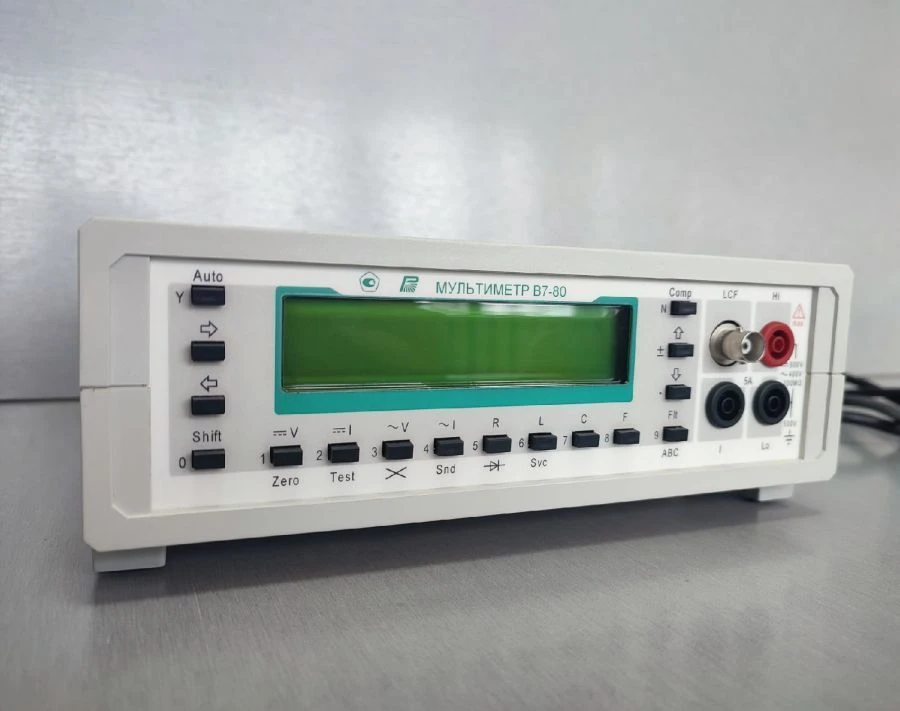

Multimeter B7-80

Digital Multimeters

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Multimeter B7-80 is a desktop multifunctional digital measuring instrument for general purpose and is designed to measure the voltage and strength of direct and alternating currents, resistance to direct current, frequency of AC signals, electrical capacitance and inductance. The device can work as a part of automatic measuring systems and can be used in different areas of industry. The operating principle of the device is that the measured voltage, current and resistance are brought to the input of the analogue-to-digital converter using a set of appropriate scaling devices. The AC signals are converted to DC voltage using a true RMS converter.

Specifications

DC resistance measurement range, R 200...200000000 ohm

DC voltage measurement range, U 0.2...600 V

RMS AC voltage measurement range in the frequency range from 10 Hz to 100 kHz 0.2...200 V

Measurement range of RMS values of AC voltage in the frequency range from 10 Hz to 20 kHz, U~ 0.2...400 V

DC measuring range, I~ 0...5 A

Measuring range of direct current in the frequency range of 10 Hz to 10 kHz, I~ 0.001...5 ohm

Capacitance measurement range, C 0...-200000

Measurement range of inductance, L 0...0.2

Measurement of frequency of AC signals, F 0.2...1000000

Measurement of frequency of AC signals, F 0.2...10000000

Measurement of frequency of AC signals, F 0.2...50000000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
