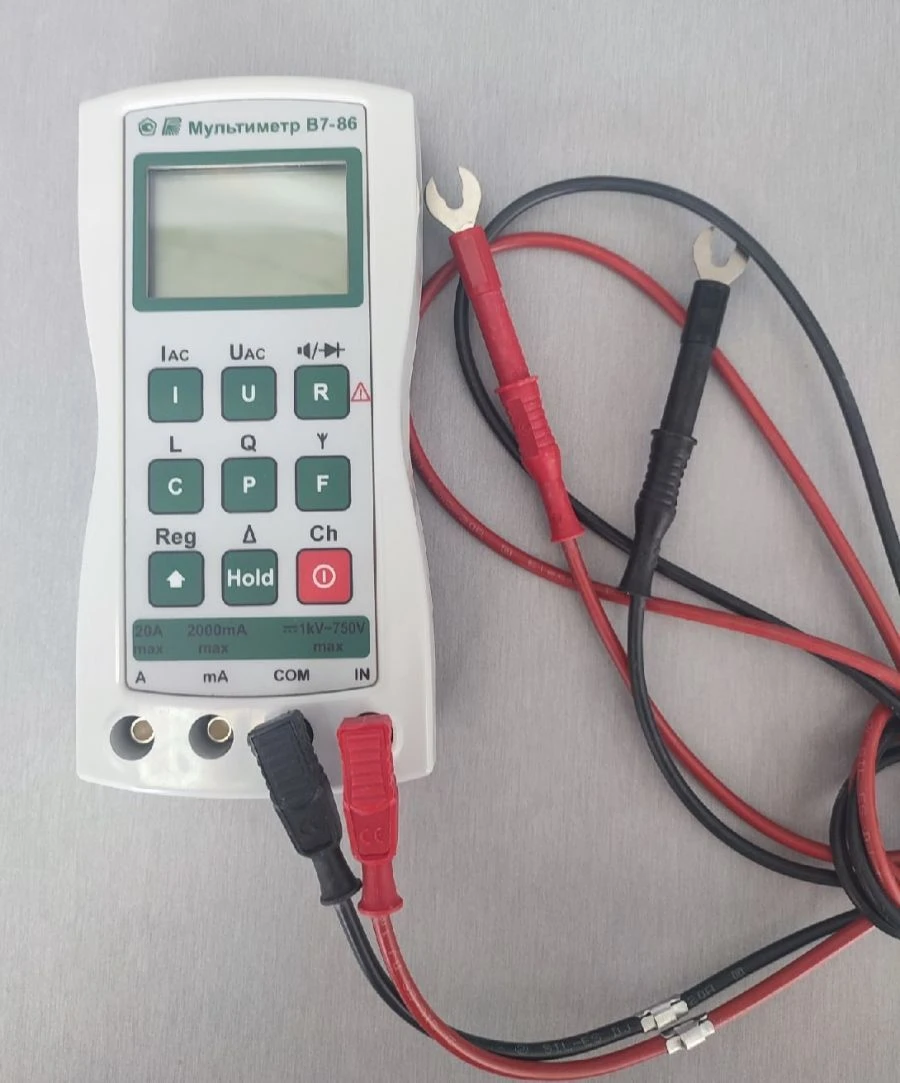

Multimeter B7-86
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Multimeter B7-86 - designed to measure the basic electrical quantities: voltage and force of DC, RMS value of voltage and force of AC, DC resistance, AC frequency, electrical capacitance, inductance. Provides measurement with non-normalised error of total, reactive and active power, power factor and p-n junction testing.
Multimeter B7-86 is a basic model powered by two disposable chemical batteries.
The multimeter software is written into the microcontroller memory at the production stage and cannot be changed during the multimeter operation.
The software sets the internal configuration of the multimeter components, ensuring that the mode of its operation corresponds to the mode set by the operator.
Multimeter B7-86 is a basic model powered by two disposable chemical batteries.
The multimeter software is written into the microcontroller memory at the production stage and cannot be changed during the multimeter operation.
The software sets the internal configuration of the multimeter components, ensuring that the mode of its operation corresponds to the mode set by the operator.
Specifications
Measuring range of DC voltage, U
-100000...1000 V
Measurement range of AC voltage with frequency from 20 Hz to 10 kHz, U~
0.02...750 V
Measurement range of AC voltage with frequency from 20 kHz to 100 kHz
0.02...200 V
DC resistance measurement, R
-100000...2000000 ohm
DC current measurement range, I
-100000000...20 A
AC current measuring range 20 Hz to 1 kHz, I~
0.0002...20 A
AC current measuring range from 1 kHz to 10 kHz, I~
0.0002...2 A
Capacitance measurement, C
-100000000000...0.002
Measurement of inductance, L
-10000000...0.2
