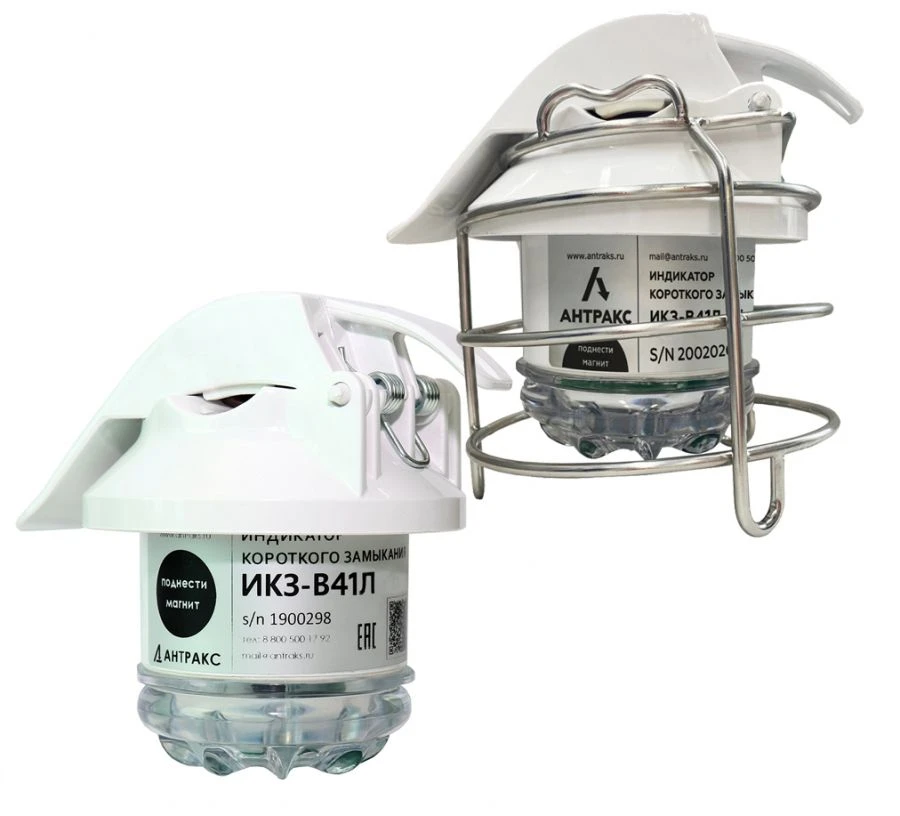

Short-circuit indicator of IKZ-B type (model IKZ-V41L)

Electrical Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Indicator of short circuit for overhead lines of distribution power grids of high voltage class 110 kV, network frequency 50 Hz, mounted directly on the wires of the monitored line, wire diameter 7-40 mm, single-sided. IKZ-V41L fixes MFZ from 25 A, has a radio channel of short-range communication standard Bluetooth Low Energy (BLE) 2.4 GHz, allowing easy adjustment and correction of settings from any smartphone with installed software PPI-3, provides the transmission of information about the emergency situation to the control centre via GSM communication (when equipped with BSPI-3L-MR). Indication of alarms by means of LEDs. Power supply source: Lithium battery (19 Ah). Battery life in standby mode: 7 years. Temperature range: Standard - 40 deg C to +70 deg C; Extended - 60 deg C to +85 deg C. Indicator protection degree IP 68. Faraday cage is used to protect indicators from induced voltage.

Technical Specifications

Voltage class of overhead lines	110 kV
Network frequency	SBVVBG
Short-circuit current sensitivity	25 A
Wire diameter	5...40 mm
Visibility of the visual indication during daylight hours	100 m
Visibility of visual indication at night time	500 m
Absolute current trip threshold	20...1000 A
Differential current trip threshold in %	50...500 %
Blanking of inrush currents	0...200
Power supply Lithium battery (19 Ah)	1 pc
Time to analyse an emergency process	1...200
Lithium battery life in standby mode	7 a
Local communication: Bluetooth short-range radio link	2.4

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
