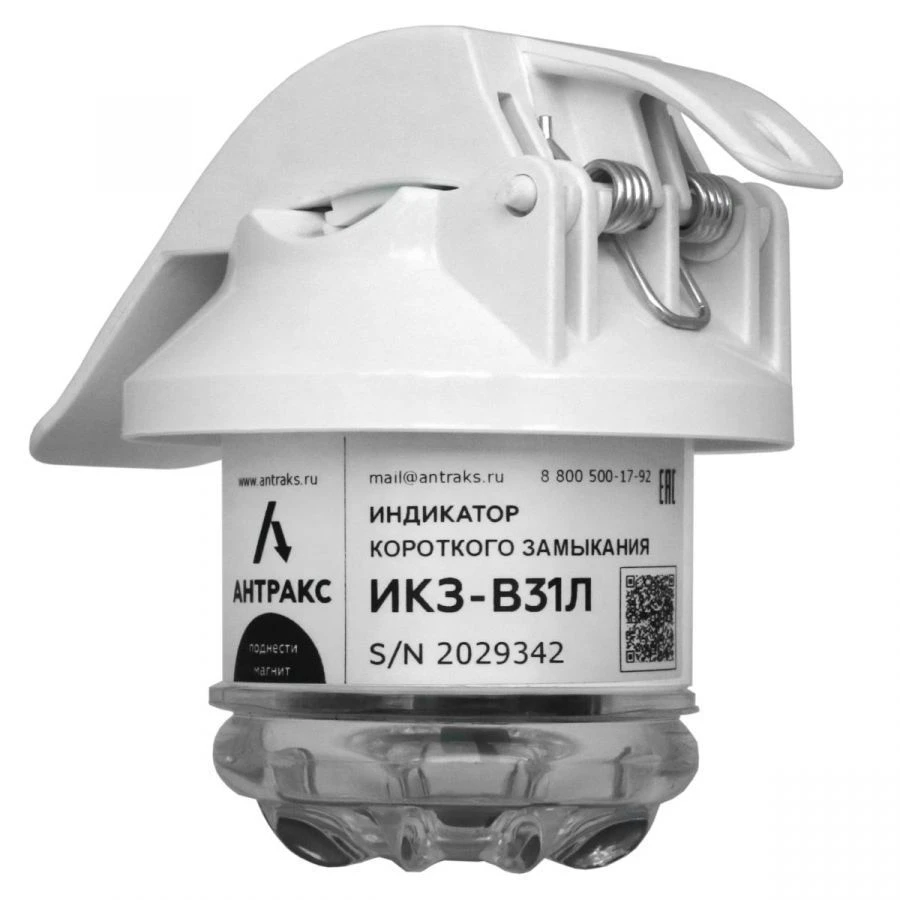

Short-circuit indicator, type IKZ-B (model IKZ-B31L)

Electrical Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Indicator of short-circuit for overhead lines of power distribution networks of voltage 6-35 kV, network frequency 50/ 60 Hz, mounted directly on the wires of the monitored line, wire diameter 5-40 mm, with any type of neutral (blind-earthed, resistive, compensated insulated) with one-sided feeding, ring lines with two-sided feeding. IKZ-V31L fixes MFZ from 20 A, has a radio channel of short-range communication standard Bluetooth Low Energy (BLE) 2.4 GHz, which allows you to easily adjust and adjust the settings from any smartphone with installed software PPI-3, provides the transmission of information about the emergency situation to the control centre via GSM-communication (when equipped with BSPI). Indication of alarms by means of LEDs. Power supply source: Lithium battery (19 Ah). Battery life (in standby mode): 7 years. Temperature range: Standard from - 40 deg C to +70 deg C; Extended from - 60 deg C to +85 deg C. Degree of protection of the indicator IP 68

Specifications

Temperature range extended -60 to +85 °C

Temperature range standard -40 to +70 °C

Local communication: Bluetooth short-range radio link 2.4

Battery life in standby mode 7 a

Time to analyze the alarm process 1...200

Removable lithium battery (19 Ah) 1 pc

Blanking of inrush currents 0...200

Differential current trip threshold in % 50...500 %

Differential current threshold a A A 20...500 A

Absolute current trip threshold 20...1000 A

Visibility of visual indication at night time 500 m

Visibility of the visual indication during daylight hours 100 m

Wire diameter 5...40 mm

Short-circuit current sensitivity 20 A

Network frequency 60

Voltage class of overhead lines 6...35 kV

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
