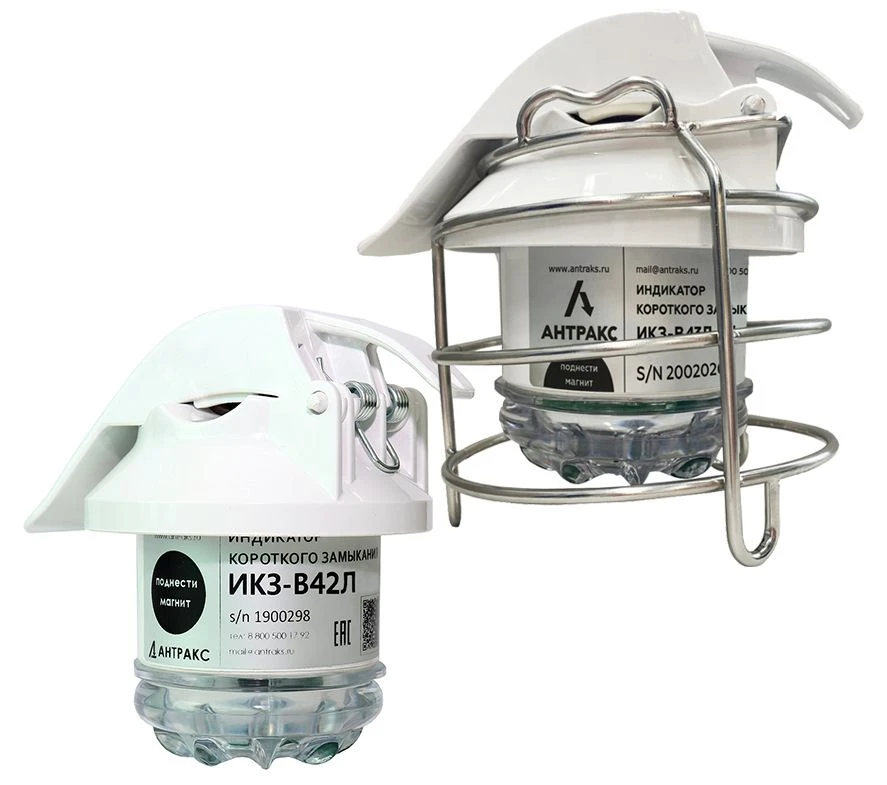

Short-Circuit Indicator IKZ-V Model IKZ-V42L for High-Voltage Networks

Electrical Measurement Instruments

Manufacturer: ANTRAKS LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Indicators of short circuit for overhead lines of distribution power grids of high voltage class 110 kV, network frequency 50 Hz, mounted directly on the wires of the controlled line, wire diameter 7-40 mm, with one-way and two-way feeding. IKZ-V42L fixes MFZ from 20 A, has a radio channel of short-range communication of Bluetooth Low Energy (BLE) 2.4 GHz standard, which allows easy setting and adjustment of settings from any smartphone with installed software PPI-3, provides transmission of information about the emergency situation to the control centre via GSM communication (when equipped with BSPI-3L-MR). Indication of alarms by means of LEDs.

Power supply source: Lithium battery (19 Ah). Battery life in standby mode: 7 years. Temperature range: Standard from - 40 deg C to +70 deg C; Extended from - 60 deg C to +85 deg C.

Indicator protection degree IP 68. Faraday cage is used to protect indicators from induced voltage.

Specifications

Overhead line voltage class

110 kV

Network frequency

SBVVBG

Short-circuit current sensitivity

20 A

Battery life

7 year

Absolute current trip threshold

20...1000 A

Differential current trip threshold in %

50...500 %

Blanking of inrush currents

0...200

Differential current threshold a A A

20...500 A

Wire diameter

5...40 mm

Visibility of visual indication in daytime

100 m

Visibility of visual indication at night

500 m

Power supply: Lithium battery (19 Ah)

1 pcs

Time to analyze the alarm process

1...200

Local communication: Bluetooth short-range radio link

2.4

Temperature range standard

-40 to +70 °C

Temperature range extended

-60 to +85 °C

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
