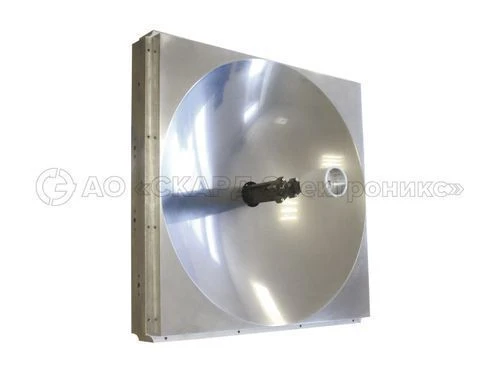

ZA7-0.4 Mirrored Antenna System for Satellite Communication

Mirror Antenna System ZA7-0,4 is made according to the ADE scheme (double mirror elliptical antenna). It is recommended for use in satellite communication systems, radio control and REP systems. Antenna reflector is solid milled, reflector material: D16T. Reflector design in the form of a square provides ease of installation of reflectors in panel assemblies (arrays). As irradiating systems can be used narrow-band irradiating systems of OS-1 series for frequencies from 18 to 110 GHz and dual-frequency irradiating systems of K/Ka and K/Q ranges of OS-5 series.
