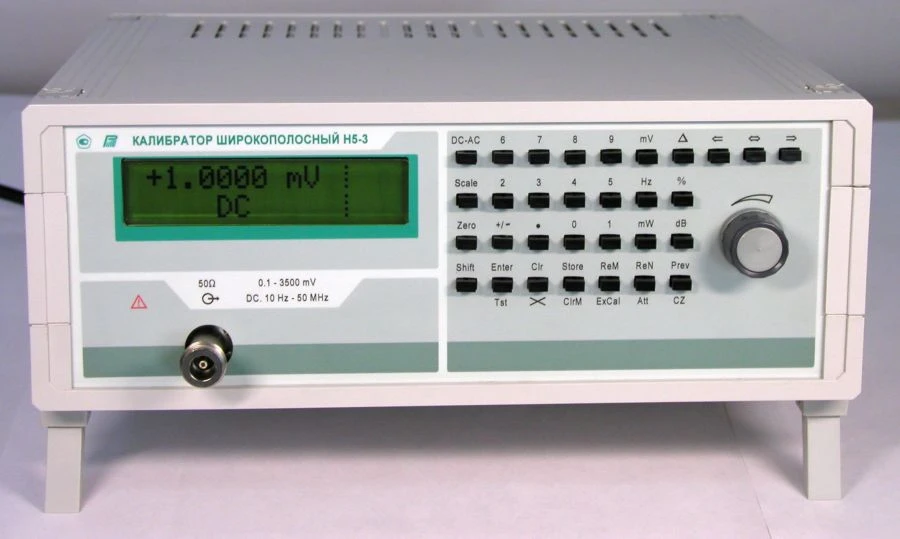

Wideband AC Voltage Calibrator H5-3 for Precise Voltage Measurement

Electrical Measurement Instruments

Manufacturer: RIP-Impuls LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Calibrator H5-3 is designed for reproduction of AC voltage of sinusoidal form in a wide frequency range during verification and calibration of AC voltmeters. An additional function of the device is reproduction of DC voltage of any polarity. The device output is designed for connection of coaxial 50-ohm connectors of 7/3mm size. The output voltage is normalised when a 50 ohm load is connected.

Specifications

Direct current reproduction ranges

±(0.1000 - 1.0999 mV) error : 0.2 % of U + 3 ?V; ±(01.100 - 10.999 mV) error : 0.15 % of U + 3 ?V; ±(011.00 - 109.99 mV) error : 0.1 % of U + 5 ?V; ±(0110.0 - 3500.0 mV) error : 0.07 % of U + 50 ?V V

Ranges of alternating current reproduction

0.1000-1.0999 mV, 1.100-10.999 mV, 11.00-109.99 mV, 110.00-329.9 mV, 330 mV-1.1 V, 1.1-3.5 V

AC reproduction frequency ranges

10-20Hz; 20-40Hz; 40Hz-100kHz; 0.1-1MHz; 1-3MHz; 3-5MHz; 5-10MHz; 15, 20 and 30MHz; 50

AC reproduction range with optional "40 dB" attenuator

3-110 µV at 10-20Hz, 20-40Hz, 40Hz-100kHz, 0.1-1MHz, 1-3MHz, 3-5MHz, 5-10
