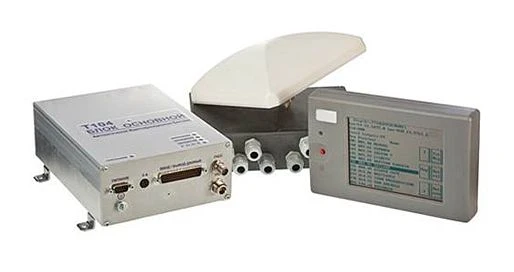

Shipboard equipment of automatic identification system (class A) "TRANZAS T104" (AIS "TRANZAS T104")

Advanced Navigation Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Equipment is mandatory shipboard equipment and is installed for use (operation) on sea and river vessels with a speed of up to 70 knots according to Regulation 19 of Chapter V "Safety of Navigation" of the International Convention for the Safety of Life at Sea (SOLAS-74 with Amendments) and Resolution No. 63 of the European Economic Commission and is designed to improve safety of navigation in the open sea, coastal waters, inland waterways, providing automatic exchange of navigational, static, voyage information,

Specifications

Frequency range 125

Frequency range 375

Step of frequencies 25

Modulation and baud rate 9600

Modulation and baud rate 1200

Radiation power of the radio transmitter 1 W

Radiation power of the radio transmitter 12.5 W

Relative frequency instability not more than 3 x 10^-6

Power consumption 18...60 W

Power consumption 6 W

Nutrition 24 V

Permissible vibrations Conform to IEC 60945

Climatic version Protected, complies with IEC 60945, IP22

Dimensions of the main unit (W x H x D) 252x55,5x185mm mm

Weight of switch unit 1 kg

Dimensions of the ELS (W x H x D) 208x161x93 mm

Operating temperature -15...55 °C

Storage temperature -40...70 °C

Sensitivity, dBm -110

Weight of control panel 8 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
