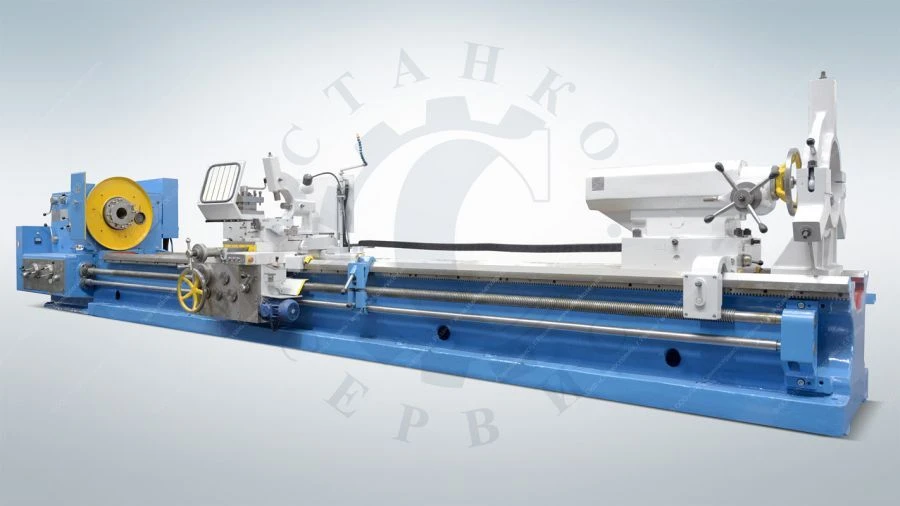

Screw-cutting lathe 1N65-18

Manual Metal Lathes

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The machine is designed for all turning operations, including taper turning and thread cutting - metric, modular, inch

Specifications

Type of product according to PP RF 616 Turning and screw-cutting machines (universal, with CNC, CNC)

Height 1880 mm

Width 2320 mm

Length 21410 mm

Spindle speed limits 5...500

Roughness of the cylindrical surface of the sample product after its finish machining Ra 2.5 µm

Accuracy class of machine tools according to GOST 8-82 ?

Machine weight 30300 kg

Height of the tool to be mounted SBVVBG mm

Main motion drive power 30 kW

Highest cutting force Pz 41

Highest torque on the spindle 9,5

Speed of rapid longitudinal movements of the caliper 3000

Step limits for machinable modular threads 0.5-24 module

Step limits for machinable inch threads 24-1/4 threads per 1 inch

Step limits for machinable metric threads 1-96 inch

Maximum lateral movement of the slide 700 mm

Maximum longitudinal movement of the slide 17600 mm

Diameter of the cylindrical bore in the spindle 128 mm

Largest diameter of the workpiece to be mounted above the bed 1000 mm

Largest diameter of the workpiece to be machined above the bed 1000 mm

Longest workpiece length 18000 mm

Largest diameter of the workpiece to be mounted and machined above the slide 650 mm

Speed of rapid transverse movements of the slide 1000

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
