Screw Centre Lathe 1M63H
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description

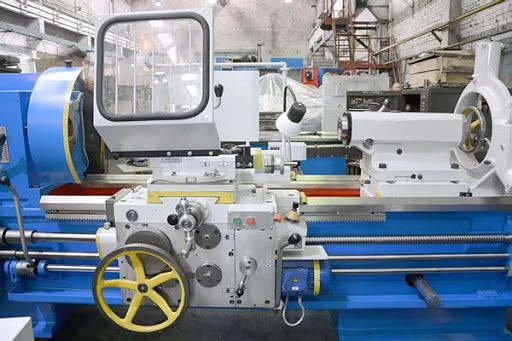

Model 1M63N lathe - screw-cutting machine produced by LLC "RYAZANSKY STANKOSTROITEL", Ryazan, Russia, is designed for turning parts with straight, stepped profiles, as well as for threading.
High rigidity, hardened guides and gears guarantee long-lasting accuracy and allows to fully use the capabilities of high-speed and carbide tools when machining both ferrous and non-ferrous metals. The direct coolant supply to the tool allows machining at high cutting conditions.
The machine is equipped with a 4-position toolholder with vertical axis of rotation and manual change of tool positions.
The accuracy class of the machine is H according to GOST 8-82.
Type of climatic execution UHL4 according to GOST 15150-69.
High rigidity, hardened guides and gears guarantee long-lasting accuracy and allows to fully use the capabilities of high-speed and carbide tools when machining both ferrous and non-ferrous metals. The direct coolant supply to the tool allows machining at high cutting conditions.
The machine is equipped with a 4-position toolholder with vertical axis of rotation and manual change of tool positions.
The accuracy class of the machine is H according to GOST 8-82.
Type of climatic execution UHL4 according to GOST 15150-69.
Specifications
Type of product according to PP RF 616
Screw-cutting lathes (universal)
Speed of rapid slide movements, longitudinal m/min
5,2
Transverse, m/min
2
Main motion drive power
15 kW
Machined above the slide
350 mm
Thread cutting steps: metric threads
1-224
Feed rates: longitudinal, mm/rev
0,033-5,6
Spindle speed limits, rpm
10-1250
Flanged spindle end according to DIN
11?
Spindle bore diameter
105 mm
Transverse, mm/rev
0,013-2,064
Cutter slides, mm/rev
0,010-1,76
Inches, threads/inch
28-0,25
Modular, modular
0,25-56
Pitch, pitch dia
112-0,5
Number of spindle speed steps
22
The largest diameter of the workpiece: mounted above the bed:
700 mm
Machined above the bed
630 mm
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
