C1409 Vector circuit analysers

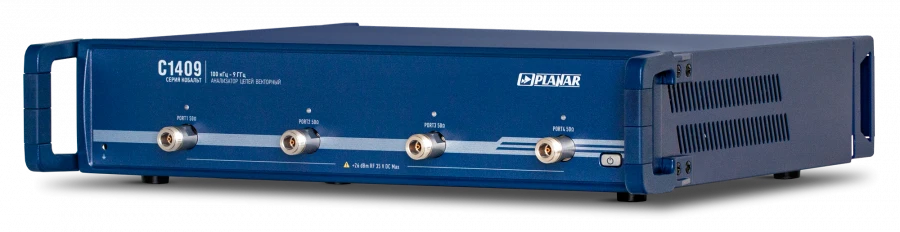

C1409 is a four-port Cobalt Series vector circuit analyser with an operating frequency range of 100 kHz to 9 GHz and two independent signal sources. The Cobalt Series are fast, wide-range and configurable circuit analysers, providing the ability to measure S-parameters of devices in the microwave range with high accuracy. Measured parameters: S-parameters - complex transmission and reflection coefficients (scattering matrix elements) of multipoles; input resistance and conductance, pass resistance and conductance, inverse S-parameters; absolute signal power at the reference and measurement receiver input of each port. A simulation mode of operation (demo) software is available for all models in the series.
