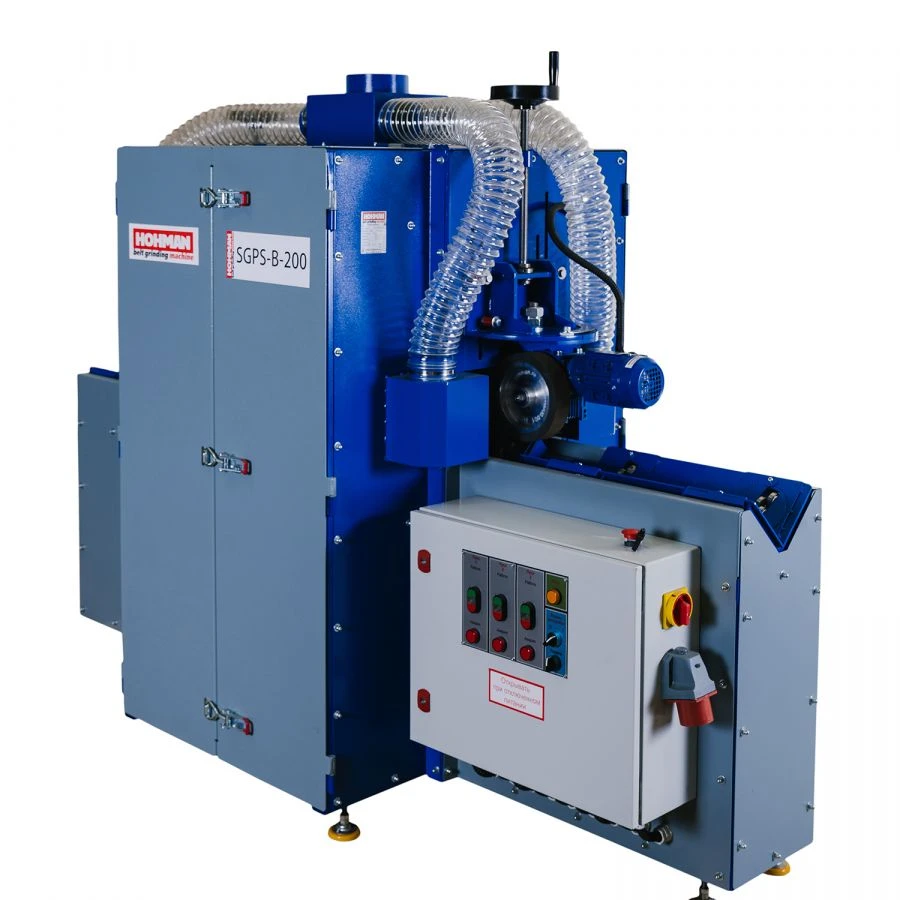

Rust Removal Machine for Round and Rectangular Pipes SGPS-B-200 - Efficient Surface Cleaning

Metal Grinding Machines

Manufacturer: SK "HOKHMAN" LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

ROUND AND RECTANGULAR PIPES RUST CLEANING MACHINE SGPS-VM-200

Description

The SGPS-B-200 machine is designed for cleaning the outer surfaces of round and profiled pipes from rust with simultaneous processing of all sides in 1 pass. Processing is carried out with metal brushes. The cross-section of round pipes from 20 to 159 mm, profile pipes from 20 to 160 mm.

Depending on the selected technology, the machine provides cleaning degree SA-2 or SA-2-1/2 according to GOST 9.402-80 (ISO 8501-1). The number of passes may vary depending on the initial contamination of the workpiece and the desired result. Pulling of the workpiece is automatic.

The feeding speed of the profile pipe is fixed, the speed of round pipe pulling is regulated by the angle of rotation of the feeding and receiving reducer. The machine has outputs for connection of aspiration system (recommended aspiration capacity - 3000 m3/h).

Specifications

Machine type

Stripper

Power

10.3 kW

Type of product according to PP RF 616

Grinding, polishing, finishing machines

Height

1680 mm

Width

1080 mm

Length

2400 mm

Drive power of the working tool

2.2 kW

Number of tool drives

4 pcs

Workpiece feed drive power

0.18 kW

Number of workpiece feed drives

2 pcs

Size of round workpiece to be machined

20...159 mm

Minimum workpiece length

1200 mm

Maximum workpiece weight

200 kg

Maximum workpiece length without additional supports

3000 mm

Dust extraction connection diameter

160 mm

Number of cord brushes per shaft

14 pcs

Number of working shafts

4 pcs

Total number of cord brushes

56 pcs

Machine weight

800 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
