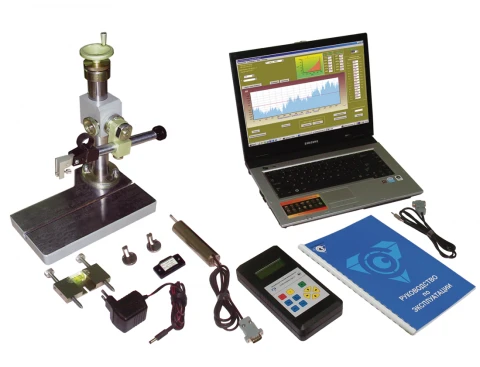

Roughness measuring instrument "SEITRONIC PSh8"

Measurement and Control Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Roughness measuring instrument "SEITRONIK PSh8-1(S.S.)"

Description

The device is designed for measuring roughness of surfaces, the cross-section of which in the measurement plane is a straight line (cylindrical surfaces; holes; flat surfaces). Measurement of roughness parameters is performed according to the system of the middle line (GOST 25142-82) in accordance with the nomenclature and ratios of parameter values provided by GOST 2789-73. SEITRONIK PSh8-3(S.S.) - measurement of roughness of parts surfaces and analysis of parts processing quality by all standardised roughness parameters. Scope of application - shops and laboratories of industrial enterprises of various branches of mechanical engineering, research institutes, metrology centres, as well as in field conditions. The device is included in the register of measuring instruments.

Specifications

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Measured roughness parameters SEITRONIC PS8-3(S.S.) Ra; Rz; Rmax; Sm; tp; S; Rp; Rv; Rq; ?q; ?a; Lo; lo; D; ?q; ?a

Principle of action Contact

Maximum length of the assessment L 12.5 mm

Number of step cutoffs N in the estimation length 1; 3; 5

Values of step l cutoffs for each subrange of the measured parameter, respectively 0,25; 0,8; 2,5 mm

Discreteness of reference, µm 0.01

Basic relative error tolerance limit for parameters Ra, Rz, Rmax, % ±5 %

Measured hole depth max. 20 mm
