Rolling trolley GAKS-KOB-T-K

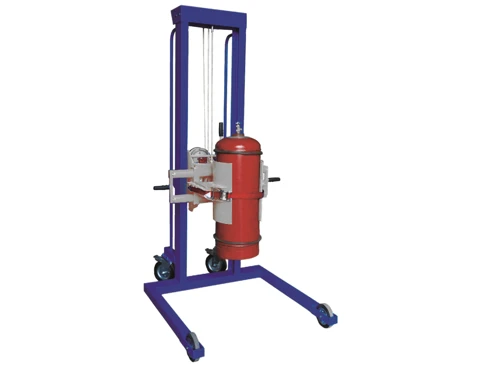

The trolley is designed for gripping, lifting, turning 90, 180, transporting gas cylinders and working on stands for examination of cylinders. The trolley is a mobile platform with a mechanism for fixing and turning the cylinder under test. It consists of a chassis, vertical rails, a cover, a lifting carriage with a swivelling grip and a self-locking winch with a manual drive. The cylinder to be tested is fixed between the gripping legs of the lifting carriage by locking screws and a tensioning strap. Turning the cylinder around the horizontal axis by 180 is done manually with the help of turning handles. The rear swivelling wheels of the chassis are equipped with a brake.
