GAKS-I-3 type testing facilities
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided

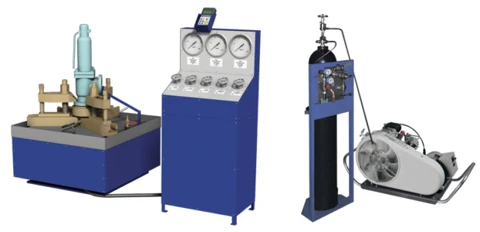

Testing complex type GAKS-I-3 is used for testing in the production and repair of safety valves and is designed to adjust (tare) valves to the actuation pressure and to test them for tightness of the gate. The complex includes a test bench with a control panel and a compressor unit, the compressor of which has the ability to adjust the compressor to the required indicators. The pneumatic control panel supplies and regulates the compressed air pressure to the test bench. Adjustment of safety valves on the stands is carried out with compressed air, tests for tightness of the gate with compressed air and technical water. Clamping the inlet flange of the valve on the bench - manual or mechanised drive. Accuracy of measurement and logging of test results is achieved by using electronic device "SEITRONIC SIR-PG10-1" or automated electronic system "SEITRONIC SIR-PG".
Technical Specifications
| Range of use by DN and ?N (or adjustment pressure ??). Stand with manual clamping of inlet flange GAKS-I-31-4/50S | DN 4...50 mm; ?n 1,0...30,0 MPa |
|---|---|
| Range of use by DN and ?N (or adjustment pressure ??). Stand with manual clamping of inlet flange AKS-I-31-50/300C | DN 50...300 mm; ?N 1,6...16,0 MPa |
| Range of use by DN and Pn (or setting pressure Rn). Stand with pneumatic drive of input flange clamping GAKS-I-32 | DN 50...150 mm; ?N 1,6...16,0 MPa |
| Range of use by DN and ?N (or adjustment pressure ??). Stand with pneumatic actuator of input flange clamping GAKS-I-33 | DN 50...200 mm; ?N 1,6...16,0 MPa |
| Range of use by DN and ?N (or adjustment pressure ??). Stand with pneumatic actuator of input flange clamping GAKS-I-34 | DN 50...300 mm; ?N 1,0...16,0 MPa |
| Range of use by DN and ?N (or setting pressure ??). Stand with hydraulic drive of inlet flange clamping GAKS-I-3- | DN 25...150 mm; ?n 0,6...40,0 MPa |
| Range of use by DN and ?N (or setting pressure ??). Stand with hydraulic drive of inlet flange clamping GAKS-I-3- | DN 10...300 mm; ?? 1,0...20,0 MPa; DN 400 mm; ?? 1,0...2,5 MPa |
| Range of use by DN and ?N (or setting pressure ??). Stand with hydraulic drive of inlet flange clamping GAKS-I-3- | DN 50...300 mm; ?? 1,0...10,0 MPa; DN 400 mm; ?? 1,0...2,5 MPa |
| Applicable methods of inspection for valve actuation pressure setting. | Acoustic (cotton) and manometric (valve opening moment) |
| Applicable methods of control in tests for tightness of gates | Visually or with a bubble chamber (by leakage volume) |
| Type of product according to PP RF 616 | Instruments and other instruments for measurement, control and testing |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
