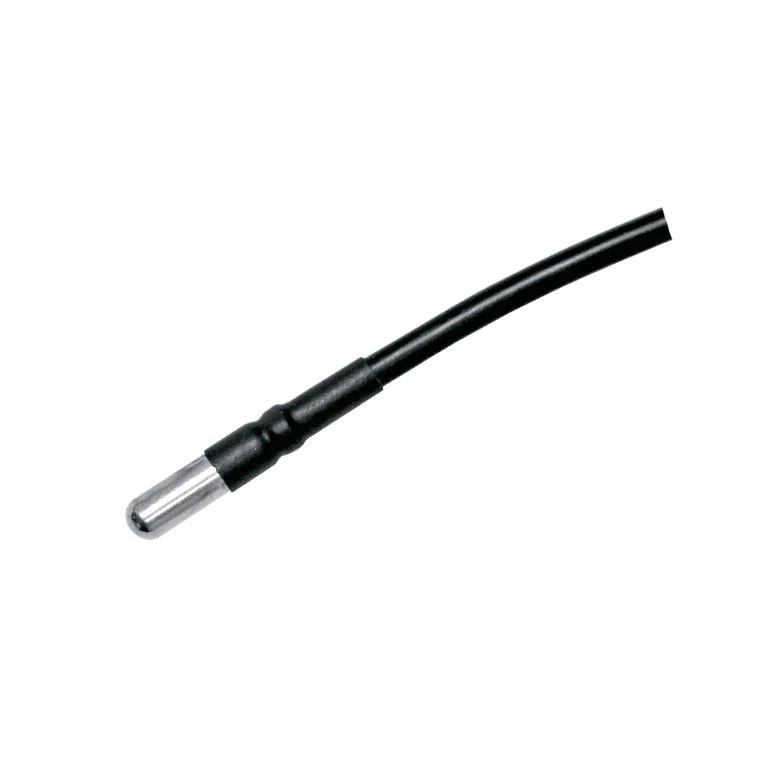

Resistance thermocouple TSPg-K2v

Resistance thermocouples with sensitive element made of platinum TSPg, design version K2v are designed for temperature control of air and non-aggressive gases, massive products with installation in "socket", for example: electric motors, bearings, radiators, etc. Thermal converters are designed for operation at ambient air temperature from minus 60 to plus 85 C, relative humidity up to 95% at plus 35 C and atmospheric pressure from 84 to 106 kPa. Thermal converters are made in climatic version UHL 3.1 according to GOST15150-69. By degree of protection against dust and water penetration thermal converters correspond to IP 67 according to GOST 14254-96. By the method of protection against electric shock thermal converters are made as a product of III class according to GOST 12.2.007.0-75. Do not expose thermal converters to shocks and falls.
