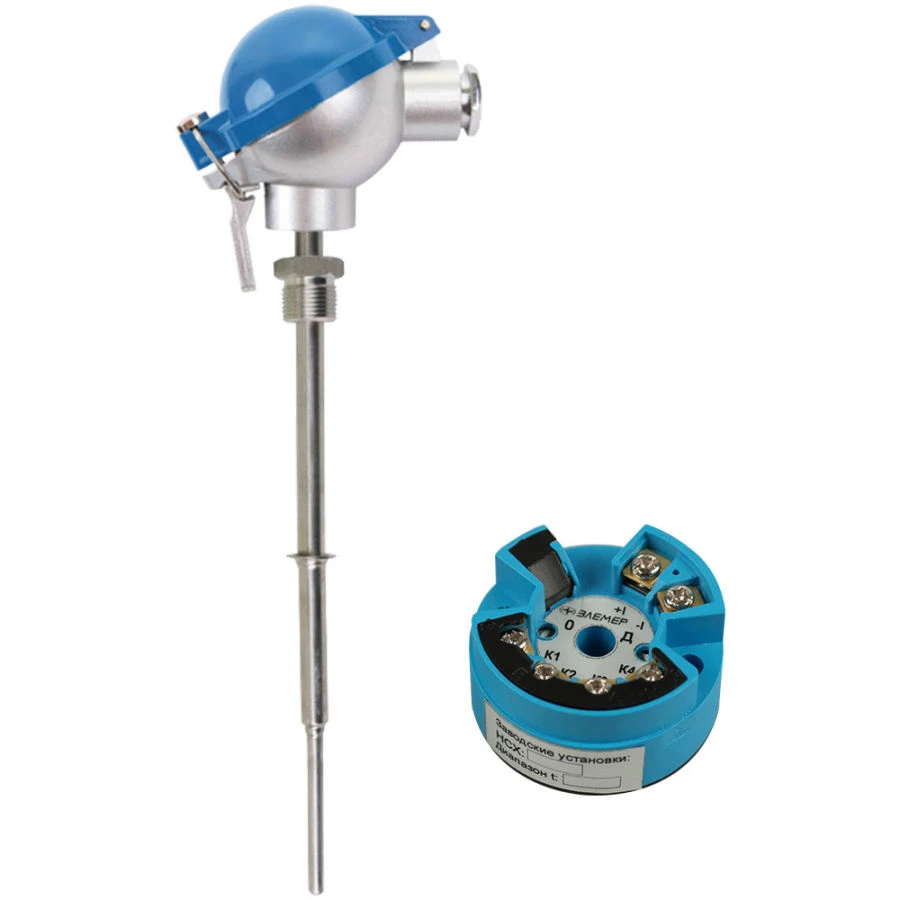

Thermal converters with unified output signal TPU-205

Temperature Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

TPU-205 are designed to measure and convert temperature into a unified output signal of DC 420 mA. They are receivers and full functional analogue of devices ????, ????, ????, ????-205.???-205 consists of primary temperature converter (??), measuring converter (??).As ?? are used thermal resistance converters (??) according to GOST 6651-2009 or thermoelectric converters (??) according to GOST R 8.585-2001. IP is a microprocessor-based device, which is installed in the head of the thermal converter.

Specifications

Degree of protection IP65

Type of climatic version GOST P 52931-2008: D3 (-50...+70); GOST 15150-69: ?1.1 (-45...+70), ???1 (-50...+70)

Material of protective armature 12Cr18Ni10T, CTMS cable, Al2O3

Versions General industrial; explosion-proof with type of explosion protection "intrinsically safe electric circuit" with addition of the index "Ex" in the code; explosion-proof with type of explosion protection "flameproof enclosure" with addition of the index "Ex

AC mains electrical supply parameters: =24 V, =36 V for TPU-205, TPU-205Exd; =24 V for TPU-205 Ex

Unified output signal range 4...20 mA

Length of mounting part 10...6500 mm

Explosion protection marking 0?? ia IIC T6 Ga X for TPU-205?x; 1?x d IIC T6 Gb X for TPU-205?xd.

Average MTBF Not less than 50000 hrs.

Average service life Not less than 15 years

Guaranteed service life From 6 to 24 m depending on the version

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
