Temperature Sensor RGT-CT-XX for Reliable Ground Temperature Monitoring

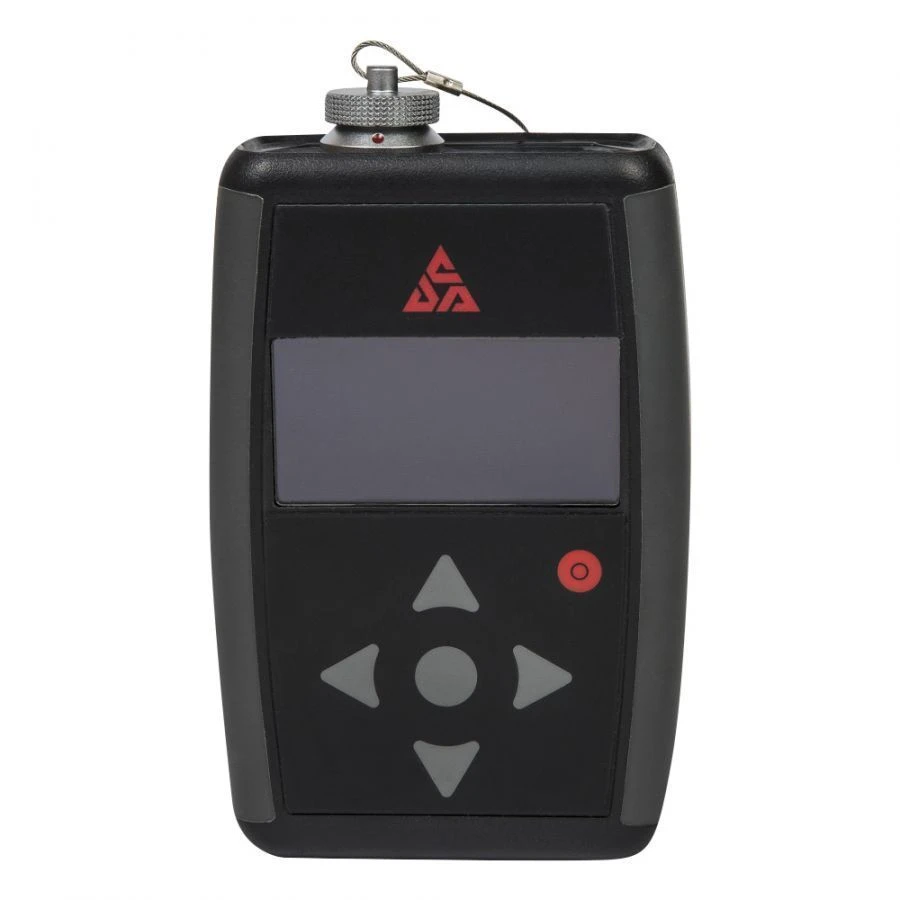

Temperature reader RGT-ST-XX is a device designed to record ground temperature values received from a thermocos. The values are stored in the internal non-volatile memory of the device with the possibility of displaying information on a monochrome OLED display. Data transfer from the device to a personal computer is carried out with the help of specialised software "SmartView" included in the delivery set.

Configurations of temperature readers differ in the way of communication with temperature logger RGT-LS-X1, in manual mode or using Bluetooth Low Energy interface. The device is made in a non-disassembled mechanically protected housing. The degree of protection of the device against dust and moisture corresponds to IP 68 according to GOST 14254-2015.

Reliable connection of the device with the thermocouple is provided by a cylindrical connector with a Push-Pull type latch, which prevents unintentional opening of contacts. The temperature reader is supplied fully factory ready. Each....
