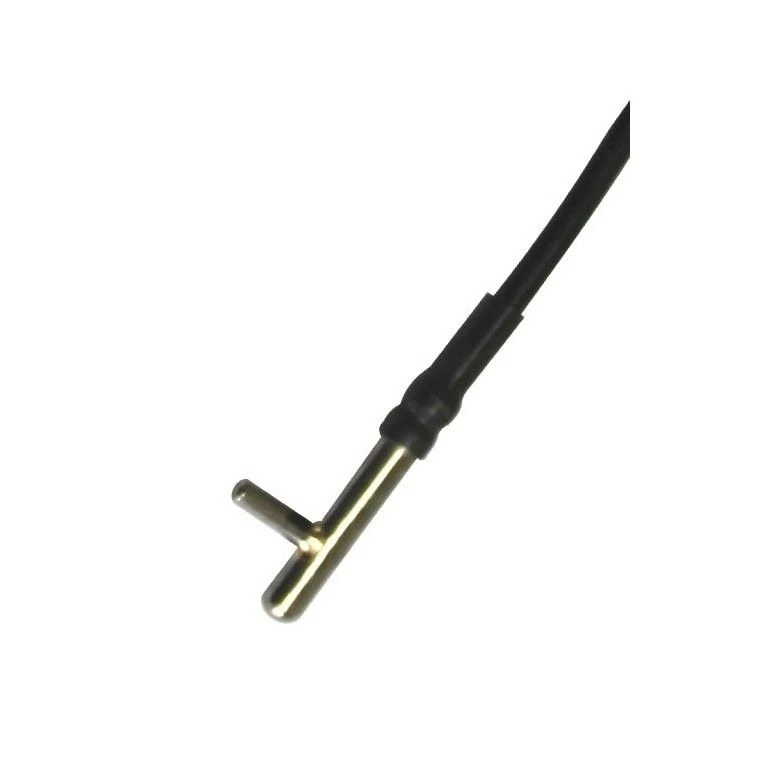

Resistance thermocouple ???? (????) -K2T

Resistance thermocouples with a sensitive element made of platinum TSPg or copper TSMg, design version K2T are designed for temperature control when installed in a socket in cases of limited space for the external part of the thermocouple, for example, to control the temperature of wood in the drying chamber. Thermal converters correspond to GOST 6651. Thermal converters are designed for operation at ambient air temperature from minus 60 to plus 85 C (TSP) and from minus 50 to plus 85 C (TSM), relative humidity up to 95% at plus 35 C and atmospheric pressure from 84 to 106 kPa. Thermal converters are made in climatic version UHL 3.1 according to GOST15150-69. According to the degree of protection against dust and water penetration thermal converters correspond to IP 67 according to GOST 14254-96. According to the method of protection against electric shock thermal converters are made as a product of III class according to GOST 12.2.007.0-75. Do not expose thermal converters to shocks and falls.
