Resistance thermocouple ???? (????) -K10 (?10)

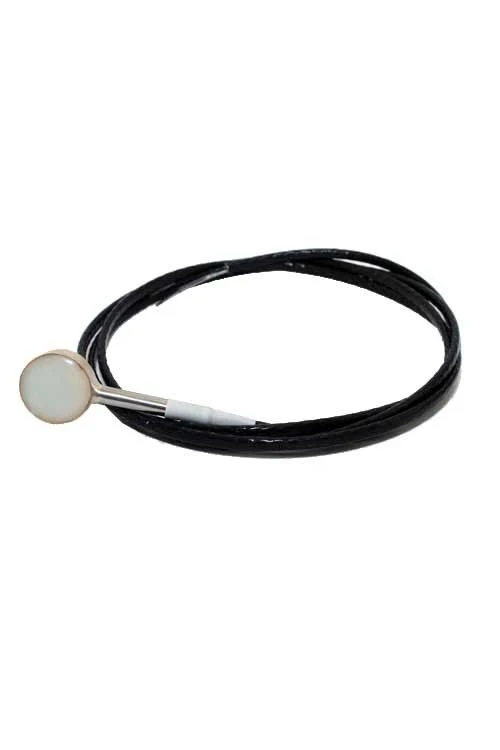

Temperature sensor with a sensitive element made of platinum TSPg or copper TSMg of design version K10 is designed for temperature control on the surface of metal containers, large diameter pipes, tanks, boilers, moulds, plates, etc. The sensor is equipped with a permanent magnet NdFeB for fixing it on the steel controlled surface. Thermal converters correspond to GOST6651. Thermal converters are designed for operation at ambient air temperature from minus 60 to plus 85 C (TSP) and from minus 50 to plus 85 C (TSM), relative humidity up to 95% at plus 35 C and atmospheric pressure from 84 to 106 kPa. Thermal converters are made in climatic version UHL 3.1 according to GOST 15150-69. By degree of protection against dust and water penetration thermal converters correspond to IP 54 according to GOST 14254-96. According to the method of protection against electric shock thermal converters are made as a product of III class according to GOST 12.2.007.0-75. Do not expose thermal converters to shocks and falls.
